Galvanized Mil3 Sand Wall Barrier Blast Wall For Flood Mil6 Gabion Welded Defensive Barriers
Mesh gabion box specifications:
1. Wire diameter: 4-5mm
2. Mesh size: 3x3 inches (7.62*7.62 cm)
3. Panel Size: 13 species
4. Application: used for any security protection and sudden attack
5. Geotextiles: Heavy Non-woven Polypropylene
6. Color: gray, military green, sand, etc
7. Surface Treatment: Hot Dip Galvanizing, Galvanizing Wire
8. Packaging: Packaging with shrink film or pallet
Specifications of defensive barrier (SX1-SX12):
| Model |
Height |
Width |
Length |
NO.of cells |
| SX-1 |
4'6''(1.37m) |
3'6'' (1.06m) |
32' (10m) |
9 cells (1*4,1*5) |
| SX-2 |
7' (2.1m) |
3'6'' (1.06m) |
108' (33m) |
30 cells(6*5) |
| SX-3 |
2'(0.61m) |
2'(0.61m) |
4' (1.21m) |
2 cells |
| SX-4 |
3'3'' (1.0m) |
3'3'' (1.0m) |
32' (10m) |
10 cells (2*5) |
| SX-5 |
2'(0.61m) |
2'(0.61m) |
10' (3.05m) |
5 cells |
| SX-6 |
5'6'' (1.68m) |
2'(0.61m) |
10' (3.05m) |
5 cells |
| SX-7 |
7'3'' (2.21m) |
7' (2.1m) |
90' (27.74m) |
13 cells (2*4,1*5) |
| SX-8 |
4'6'' (1.37m) |
4' (1.22m) |
32' (10m) |
9 cells (1*4,1*5) |
| SX-9 |
3'3'' (1.0m) |
2'6'' (0.76m) |
30' (9.14m) |
12 cells (2*6) |
| SX-10 |
7' (2.1m) |
5' (1.52m) |
95' (30.5m) |
20 cells (4*5) |
| SX-11 |
3'3'' (1.0m) |
3'3'' (1.0m) |
3'3'' (1.0m) |
1 cell |
| SX-12 |
7'3'' (2.21m) |
7'3'' (2.21m) |
7'3'' (2.21m) |
1 cell |

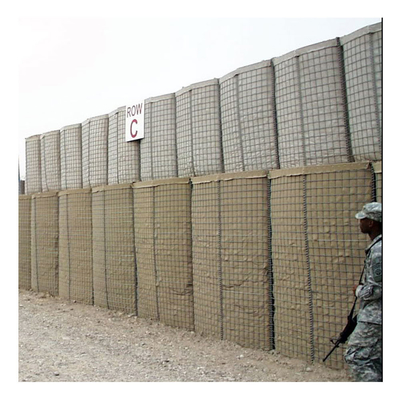

Defensive barrier application:
1. Fortifications
Most people use defense barriers to build fortifications because they can be stacked on top of each other. You can change the width and height according to your requirements. More simple and flexible.
2. Shooting range
Nowadays, many people use defense barriers to build shooting ranges because of its high defense strength and safety.
3. Flood control
Defense barriers are becoming more and more popular and easy to assemble, and good permeability. Most countries near coastlines choose defense barriers as flood prevention walls. Even around the hotel, they erected protective walls.
Advantages of Defensive Barrier:
1. Removable
It is assembled by panels and spring wires, and can be folded into a whole during loading and transportation.
2. Anticorrosion
The raw material is hot-dip galvanized wire, which can be used for 10 years or more and is suitable for external protection.
3. Easy installation
When you get it, open it in a spacious place and fill it with sand and mud. Even 2-3 people can finish it.
4. Rapid displacement
When you want to use it in another place, just move it and it can be used many times.
5. Easy to repair
If a part is damaged, throw it away and connect it with a new one.
