2x1x1mesh Gabion High Security Collapsible Military Barriers Container Walls For Bunkers
SHUXIN company Specializing in hexagonal Gabion basket / Welded Gabion / Hesco barrier with export experience. We have our own design team, our products are widely exported to worldwide market, such as American Continent,Europe ,Southeast Aisa, Australia ,Africa , The Middle East ,Southeast Asian Countries and Regions.
Hot Dipped Galvanized Gabion Box with Geotextile is also named as bastion, defense wall,Sand Cage, Welded Gabion box, etc. It is a prefabricated, multi-cellular system,

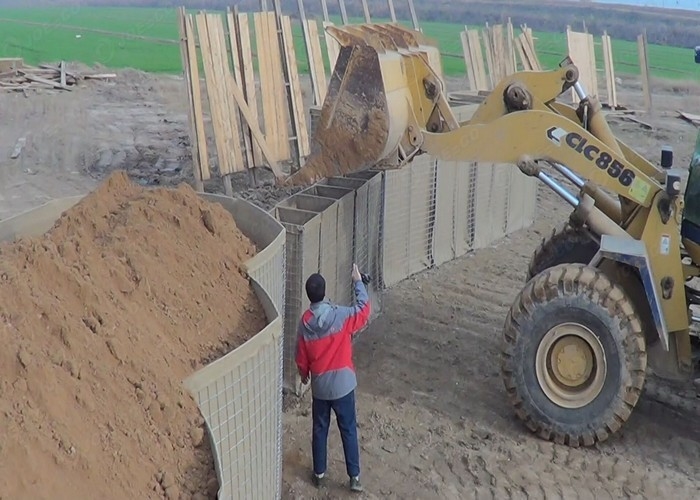

Made of Galvanized welded mesh and lined with non-woven geotextile. Units can be extended and joined using the provided joining pins. It is easy installed with using minimal manpower and commonly available equipment. After extended, it is filled into sand,stone,then Welded Gabion barrier like a defence wall or bunker,it is widely used for fortification and flood control.Accessories Supplied With Carrier Units.
The Standard Technical Specifications
| Military Barrier Used Shooting Range Barrier |
| Model |
Height |
Width |
Length |
| mil-1 |
54"(1.37M) |
42"(1.06M) |
32'9"(10M) |
| mil-2 |
24"(0.61M) |
24"(0.61M) |
4'(1.22M) |
| mil-3 |
39"(1.00M) |
39"(1.00M) |
32'9"(10M) |
| mil-4 |
39"(1.00M) |
60"(1.52M) |
32'9"(10M) |
| mil-5 |
24"(0.61M) |
24"(0.61M) |
10'(3.05M) |
| mil-6 |
66"(1.68M_ |
24"(0.61M) |
10'(3.05M) |
| mil-7 |
87"(2.21M) |
84"(2.13M) |
91'(27.74M) |
| mil-8 |
54"(1.37M) |
48"(1.22M) |
32'9"(10M) |
| mil-9 |
39"(1.00M) |
30"(0.76M) |
30'(9.14M) |
| mil-10 |
87"(2.21M) |
60"(1.52M) |
100'(32.50M) |
| mil-11 |
48"(1.22M) |
12"(0.30M) |
4'(1.22M) |
| mil-12 |
84"(2.13M) |
42"(1.06M) |
108'(33M) |
| mil-19 |
108"(2.74M) |
42"(1.06M) |
10'5"(3.18M) |
Mesh Gabion Box Specification:
1. Wire diameter: 4-5mm
2. Mesh size: 75x75mm,50x50mm
3. Panel size: 12 type size for any security protection,suddenly burst attacks
4. Geotextile: in heavy duty non-woven polypropylene;Color:Grey and Green,Sand color etc.
5. Finish: hot dipped galvanized, Galfan wire.
6. Packing: wrapped with shrink film or packed in pallet
The Application for Welded Gabion Barrier Military Barrier
1. Flood Prevention Barrier
From a simple perimeter wall to a complex base infrastructure, Shuxin products provide rapid expeditionary protection
2. Permanent or Semi-permanent Dike
Defensive Barriers can as the Dike against the Flood permanently or Semi-Permanently.
3. Flood Control Retaining Wall
Wiht sand and earth in it, Military Gabion Box can as a retaining Wall to against the flood.
4. Protection Engineering of Seaside Area
Military Defensive Wall is more and more homemade at the seaside area as Protection Fence
5. Protecting Existing Structures
6. Coastal Erosion Control
Defensive Barrier Wall can be widely used in surrounding security and defensive walls, equipment revetments, explosives and contraband search areas, ammunition compounds, personnel and material bunkers, observation points, defensive shooting positions, highway checkpoints, border checkpoints

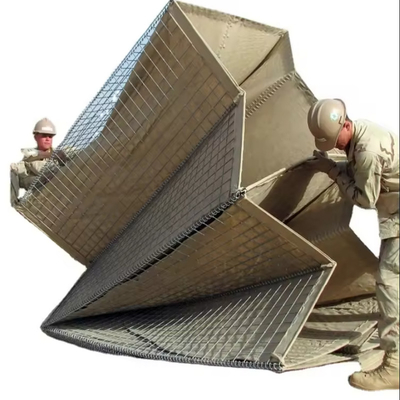

1. Usually the Barriers packed in Pallet and 5 cells per set,After getting it, make it stand.
2. To Pull them, make them opened and in a line to achieve the length you want, If more cells use Joint Pin to connect(Barrier Installation).
