Product Description:
All KN products are pre-as-sembled and deliveredpalletised with joining pins,to enable the connection ofindividual units, which canthen be filled with availablematerial using minimalmanpower and commonlyavailable equipment.Protection is afforded bythe fill material of thestructure as a conse-quence of its mass andphysical properties, alliedwith the proven dynamicproperties of Concertainer units.

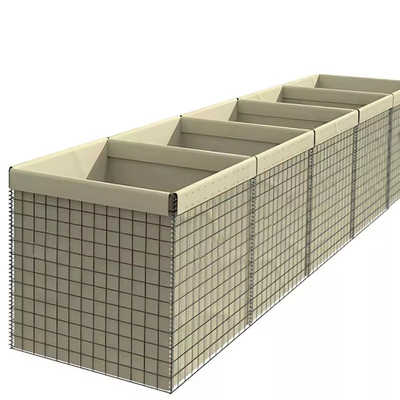

The KN Defensive Barierunit is a multi-cellularbarrier system manufactured from weldedzinc-aluminum coatedsteel wire mesh and joinedwith vertical, helical-coiljoints. The units are linedwith a heavy-duty non-wo-ven polypropylene geotex-tile. When joined and filledthe system can be used tocreate barriers of excep-tional strength and struc-tural integrity.
Defensive barrier specifications:
1. Wire diameter: 4mm 5mm
2. Mesh size: 3x3 inches (7.62*7.62 cm)
3. Panel Size: 13 species
4. Application: used for any security protection and sudden attack
5. Geotextiles: Heavy Non-woven Polypropylene
6. Color: gray, green, sand, etc
7. Surface Treatment: Hot Dip Galvanizing, Galvanizing Wire
8. Packaging: Packaging with shrink film or pallet
The Standard Technical Defensive BarrierSpecifications from SX 1 to SX 19
| Welded Military Sand Filled Barrier for Retaining Wall |
| Model |
Height |
Width |
Length |
| KN-1 |
54"(1.37M) |
42"(1.06M) |
32'9"(10M) |
| KN-2 |
24"(0.61M) |
24"(0.61M) |
4'(1.22M) |
| KN-3 |
39"(1.00M) |
39"(1.00M) |
32'9"(10M) |
| KN-4 |
39"(1.00M) |
60"(1.52M) |
32'9"(10M) |
| KN-5 |
24"(0.61M) |
24"(0.61M) |
10'(3.05M) |
| KN-6 |
66"(1.68M_ |
24"(0.61M) |
10'(3.05M) |
| KN-7 |
87"(2.21M) |
84"(2.13M) |
91'(27.74M) |
| KN-8 |
54"(1.37M) |
48"(1.22M) |
32'9"(10M) |
| KN-9 |
39"(1.00M) |
30"(0.76M) |
30'(9.14M) |
| KN-10 |
87"(2.21M) |
60"(1.52M) |
100'(32.50M) |
| KN-11 |
48"(1.22M) |
12"(0.30M) |
4'(1.22M) |
| KN-12 |
84"(2.13M) |
42"(1.06M) |
108'(33M) |
| KN-19 |
108"(2.74M) |
42"(1.06M) |
10'5"(3.18M) |
Application of Defensive Barrier:
Peripheral security and defense wall
Equipment protection
Shelter for personnel and materials
Observation point
Defensive firing position sentry
Explosive and contraband search area
Highway inspection station
Border crossing checkpoint
Protect existing structures
Flood control retaining wall beach erosion
Coastal Area Protection Project
Advantages of Defensive Barrier:
1. Removable
It is assembled by panels and spring wires, and can be folded into a whole during loading and transportation.
2. Anticorrosion
The raw material is hot-dip galvanized wire, which can be used for 10 years or more and is suitable for external protection.
3. Easy installation

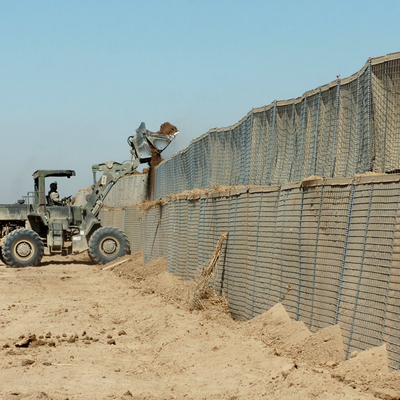

When you get it, open it in a spacious place and fill it with sand and mud. Even 2-3 people can finish it.
4. Rapid displacement
When you want to use it in another place, just move it and it can be used many times.
5. Easy to repair
If a part is damaged, throw it away and connect it with a new one.
Packing & Shipping:
Product Packaging:
The Defensive Barrier product will be packaged in a sturdy cardboard box to ensure safe delivery. The box will have our company logo and product information printed on it.
Shipping:
Orders will be shipped within 2 business days of receiving payment. Delivery time will vary depending on the destination, but typically takes 3-5 business days.
