Product Specifcation

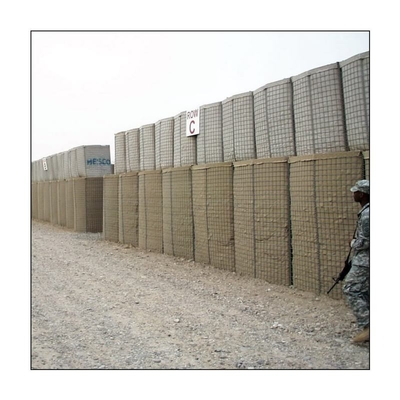

DEFENSIVE BARRlERS is a modern gabion primarilyused for flood control and fortifications.lt is made ofa collapsible wire mesh container and heavy dutyfabric liner, and used as a temporary to semi-permanent levee or blast wall against explosionsor small-arms. It has seen considerable used in lragand Afghanistan.
The main advantage of defensive barriers, stronglycontributing to their popularity with troops andflood fighters,is the quick and easy setup.Previously,people had to fill sandbags,a slow undertaking, withone worker filling about 20 sandbags per hour.Workers using defensive barriers and a front endloader can do ten times the work of those usingsandbags.
Material: hot-dipped galvanized steel wire or zinc-aluminum alloy steel wire.
Wire diameter: 4mm or 5mm.
Mesh size: 50*50mm,75*75mm,76.2*76.2mm,50*100mm,100*100mm,ect.
Geotextile: heavy duty non-woven polypropylene,weight can be 250 g/ m².
Geotextile color: White,beige, Green and other customized colors.
Product Model
| MODEL |
Height |
Width |
Length |
NO. of Cells |
| SX-1 |
4'6"(1.37M) |
3'6"(1.06M) |
32'(10M) |
9 cells(1*4, 1*5) |
| SX-2 |
7'(2.1M) |
3'6"(1.06M) |
108'(33M) |
30 cells(6*5) |
| SX-3 |
2'(0.61M) |
2'(0.61M) |
4'(1.21M) |
2 cells |
| SX-4 |
3'3"(1.0M) |
3'3"(1.0M) |
32'(10M) |
10 cells(2*5) |
| SX-5 |
2'(0.61M) |
2'(0.61M) |
10'(3.05M) |
5 cells |
| SX-6 |
5'6"(1.68M) |
2'(0.61M) |
10'(3.05M) |
5 cells |
| SX-7 |
7'3"(2.21M) |
7'(2.13M) |
90'(27.74M) |
13 cells(2*4,1*5) |
| SX-8 |
4'6"(1.37M) |
4'(1.22M) |
32'(10M) |
9 cells(1*4, 1*5) |
| SX-9 |
3'3"(1.0M) |
2'6"(0.76M) |
30'(9.14M) |
12 cells(2*6) |
| SX-10 |
7'(2.12M) |
5'(1.52M) |
95'(30.5M) |
20 cells(4*5) |
| SX-11 |
3'3"(1.0M |
3'3"(1.0M) |
3'3"(1.0M) |
1 Cell |
| SX-12 |
7'3"(2.21M) |
7'3"(2.21M) |
7'3"(2.21M) |
1 Cell |
The Advantages for Barrier:
1. Collapsible
It is assembled by Panel and Spring Wire, When Loading and transportation, lt is Foldable into one piece.
2.Anti-Corrosion
The Raw material is Hot Dipped Galvanized Wire, it can use 10 years even more longer, fit for outside protection.3. Easy Installation
After getting it, just put it in the right place and open it, Full filled the sand and earth is okay. Even 2-3 personscan finishit.
4.Quick Displacements
When you want to use it in another place,Just to move it, it can use many times
5. Easy to repair
If some part is destroyed, Just left it and connect the new one is okay.

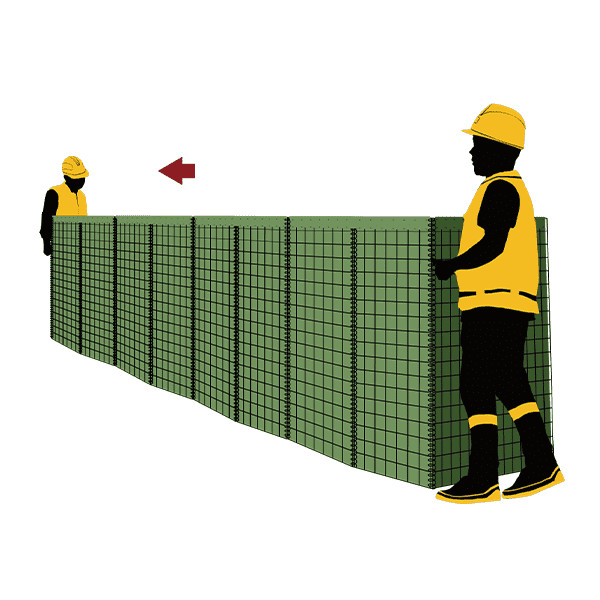

Installation Procedure
All KN products are pre-as-sembledand delivered palletised with joining pins,to enable the connection of individual units,which can then be filled with availablematerial using minimal manpower andcommonly available equipment.

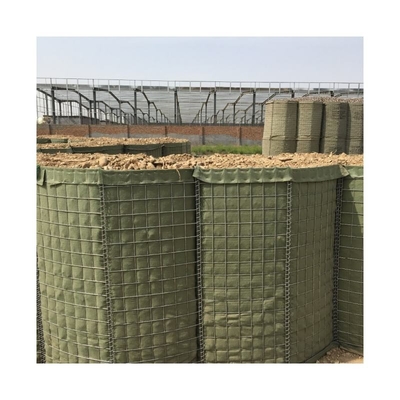

Assembling the bastion entails unfolding it andfilling it with sand, soil or gravel, usually usinga front end loader.The placement of the barrieris generally very similar to the placement of asandbag barrier or earth berm except that roommust generally be allowed for the equipmentused to fill the barrier.
Company Profile
Anping Shuxin Wire Mesh Manufactory Co., Ltd. is located in Anping County which is "the hometown of Wire Mesh"and also known as " the production and Distribution Base of Wire Mesh". Founded in 2005.We have passed lS09001:2000 intemational quality System certificate. Through ten years'management, with strong technical development capability and constant innovation,we researchdesign, and produce wire mesh products and 90 percent of our products are for export.Our company covers an area of 20,000 square meters. We have 280 sets of equipment and a staffof 136 people including 28 technicians. KN is one of the biggest local wire manufacturers.We have advanced production technology and rich experience in welded.
