Product Specifcation And Model
Environmental Barriers, Flood Barriers, a reliable, easy-to-deploy, and robust solution foremergency flood protection or long-term wetland restoration.
Defensive Barriers: Protecting both and civilian personnel in dangerous environments demandsdefensive solutions that are secure, reliable, and readily available.
Protective Barriers: Protect your workforce, Create a secure refuge for your employees byprotecting up to eight people with Accommodation Bunker.
Rockface: transforms the highly effective wall into an aesthetically pleasing structure ideal forcustomer-facing perimeter security where a more benign appearance is required.
Defensive Barrier Wall that has the ability to resist explosion shock waves and can limit thedestructive effects of explosions within a certain range.
Compared with the concrete explosion-proof wall, it has the advantages of liaht weight, easyloading and unloading, recyclable and reusable.
Defensive barrier specifications:
1. Wire diameter: 4mm 5mm
2. Mesh size: 3x3 inches (7.62*7.62 cm)
3. Panel Size: 13 species
4. Application: used for any security protection and sudden attack
5. Geotextiles: Heavy Non-woven Polypropylene
6. Color: gray, green, sand, etc
7. Surface Treatment: Hot Dip Galvanizing, Galvanizing Wire
8. Packaging: Packaging with shrink film or pallet
The Standard Technical Defensive BarrierSpecifications from SX 1 to SX 19
| Welded Military Sand Filled Barrier for Retaining Wall |
| Model |
Height |
Width |
Length |
| KN-1 |
54"(1.37M) |
42"(1.06M) |
32'9"(10M) |
| KN-2 |
24"(0.61M) |
24"(0.61M) |
4'(1.22M) |
| KN-3 |
39"(1.00M) |
39"(1.00M) |
32'9"(10M) |
| KN-4 |
39"(1.00M) |
60"(1.52M) |
32'9"(10M) |
| KN-5 |
24"(0.61M) |
24"(0.61M) |
10'(3.05M) |
| KN-6 |
66"(1.68M_ |
24"(0.61M) |
10'(3.05M) |
| KN-7 |
87"(2.21M) |
84"(2.13M) |
91'(27.74M) |
| KN-8 |
54"(1.37M) |
48"(1.22M) |
32'9"(10M) |
| KN-9 |
39"(1.00M) |
30"(0.76M) |
30'(9.14M) |
| KN-10 |
87"(2.21M) |
60"(1.52M) |
100'(32.50M) |
| KN-11 |
48"(1.22M) |
12"(0.30M) |
4'(1.22M) |
| KN-12 |
84"(2.13M) |
42"(1.06M) |
108'(33M) |
| KN-19 |
108"(2.74M) |
42"(1.06M) |
10'5"(3.18M) |

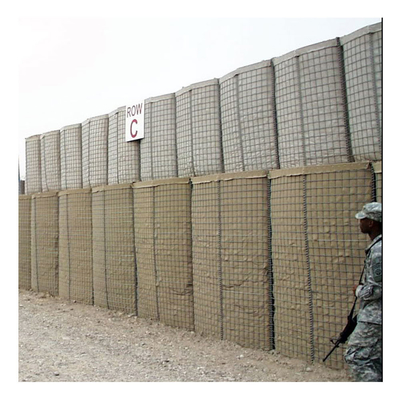

Product Application
Fast dam formation and wide adaptability.
Folding packaging is easy to store and transport.
Strong mobility, is a field filling sand wall.
Easy installation, outstanding effect.
Conducive to recycling and reuse,green environmental protection.
There are many types and modules ofdefensive barriers, which can be usedfor a wide range of purposes and canbe used for the formation of: warehouses,firing ranges, dormitories, ammunitiondepots, command posts, garages, aircrafthangars, oil depots, equipment rooms, etc.

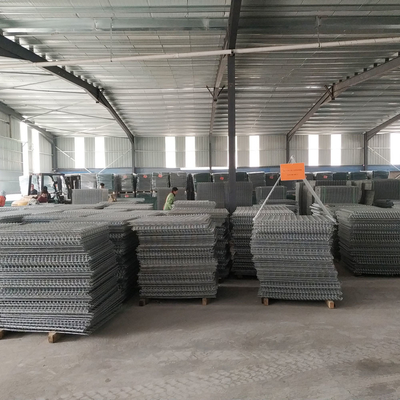

Company Profile
Our company is located in Anping County which is "the hometown of Wire Mesh"and also known as " the production and Distribution Base of Wire Mesh". Founded in 2005.We have passed lS09001:2000 intemational quality System certificate. Through ten yearsmanagement, with strong technical development capability and constant innovation,we research,design, and produce wire mesh products and 90 percent of our products are for export.Our company covers an area of 20,000 square meters. We have 280 sets of equipment and a staffof 136 people including 28 technicians. KN is one of the biggest local wire manufacturers.We have advanced production technology and rich experience in welded.
