Product Details:
|
| Raw Material: | Hot Dippled Galvanized Wire | Geotextile: | 300 G/㎡ Standard |
|---|---|---|---|
| Mesh Diameter: | 5.0mm Diameter | Apeture: | 3" (76.2mm×76.2mm) |
| Color: | Military Green, Sand Color | Accessories: | Staple, Joint Pin |
| Brand: | KESCO, Not HESCO | Sample: | Free Sample |
| Stock: | Some Types Have Stock, Welcome To Inquiry | ||
| Highlight: | Welded Military Defensive HESCO Barrier Boxes,Geotextile Military Defensive HESCO Barrier Boxes,Hot Galvanized Welded hesco bastion barrier |
||
Hot Galvanized Welded Military Defensive HESCO Barrier Boxes With Geotextile
As the name implies, the defensive barrier was originally mainly used for protection, fortifications, explosion-proof walls, etc. It is made of foldable welded gabion net and ultraviolet protection heavy geotextile lining. The common surface treatment is hot dip galvanizing before welding, welding after galvanizing and Galfan coating. They all have a long service life. It is widely used in Iraq, Afghanistan and Africa.
Material : All wires conform to BS EN10218-2012,Zinc-Alunminum coating are to BS EN 10244-2:2009
Geotextile: heavy duty geotextile, non-woven,permeable,
polypropulene farbric
Geotextile color: beige or green color
Mesh Hole: 3” X 3”
Unit Size : 2.13m x 1.06m x 33m
Cells:1unit=5 cells+5cells+5cells+5cells+5cells+5cells=30cells
A geotextile lined unit for general use as an earth filled barrier .
The units are suitable for filling with earth ,sand,gravel,crushed rock and other granular materials.
The unit fulfills a wide range of users,including the construction of protective walls and barriers.
The Standard Technical Specifications from SX1 to SX19
| Welded Military Used Shooting Range Barrier | |||
| Model | Height | Width | Length |
| SX-1 | 54"(1.37M) | 42"(1.06M) | 32'9"(10M) |
| SX-2 | 24"(0.61M) | 24"(0.61M) | 4'(1.22M) |
| SX-3 | 39"(1.00M) | 39"(1.00M) | 32'9"(10M) |
| SX-4 | 39"(1.00M) | 60"(1.52M) | 32'9"(10M) |
| SX-5 | 24"(0.61M) | 24"(0.61M) | 10'(3.05M) |
| SX-6 | 66"(1.68M_ | 24"(0.61M) | 10'(3.05M) |
| SX-7 | 87"(2.21M) | 84"(2.13M) | 91'(27.74M) |
| SX-8 | 54"(1.37M) | 48"(1.22M) | 32'9"(10M) |
| SX-9 | 39"(1.00M) | 30"(0.76M) | 30'(9.14M) |
| SX-10 | 87"(2.21M) | 60"(1.52M) | 100'(32.50M) |
| SX-11 | 48"(1.22M) | 12"(0.30M) | 4'(1.22M) |
| SX-12 | 84"(2.13M) | 42"(1.06M) | 108'(33M) |
| SX-19 | 108"(2.74M) | 42"(1.06M) | 10'5"(3.18M) |

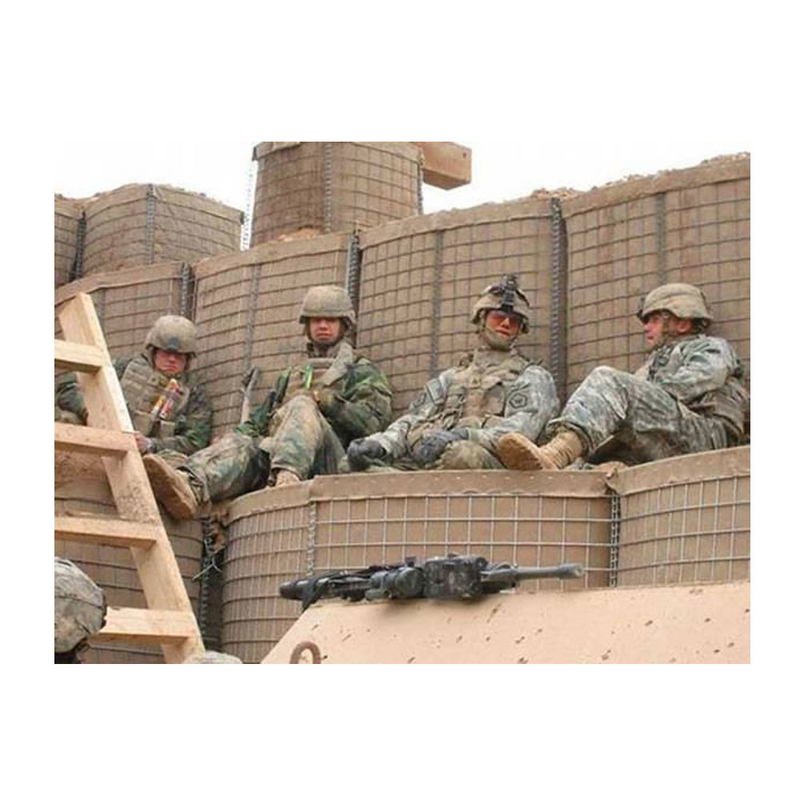

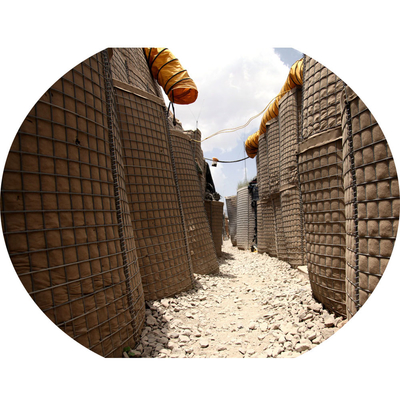

Defense barriers come in many sizes. Most fences can also be stacked and packed into a compact set. Whether used as protective barriers or to define borders, security barriers and T-walls are used to protect equipment, facilities, vehicles and personnel in peacekeeping, humanitarian and operations.
Defensive barriers are walls that are resistant to blast shock waves, limiting the destructive effects of explosions to a certain range. Compared with concrete explosion-proof wall, it has the advantages of light weight, easy installation, easy disassembly and recycling.
Defensive barriers can be widely used in:
Perimeter security and defensive walls, equipment revetments, search areas for explosives and contraband, personnel and material bunkers, observation points, defensive firing positions, road checkpoints, border checkpoints. Protection of existing structures, freeway traffic management, flood protection, watercourses, emergency flood protection deployment, erosion control retaining walls.
Defensive barriers features:
Easy to handle and install
High strength and impact resistance
Long life, normal use
Can be filled with sand, cement, stone, dirt.
Defensive Barriers are different from traditional gabion baskets. It can hold not only stones but finer silts as well. Filling is made from local materials and is especially suitable for downstream or coastal use where stones are scarce. With the help of advanced tools such as excavators and forklifts, the installation efficiency is dozens or even hundreds of times that of traditional sandbags.
