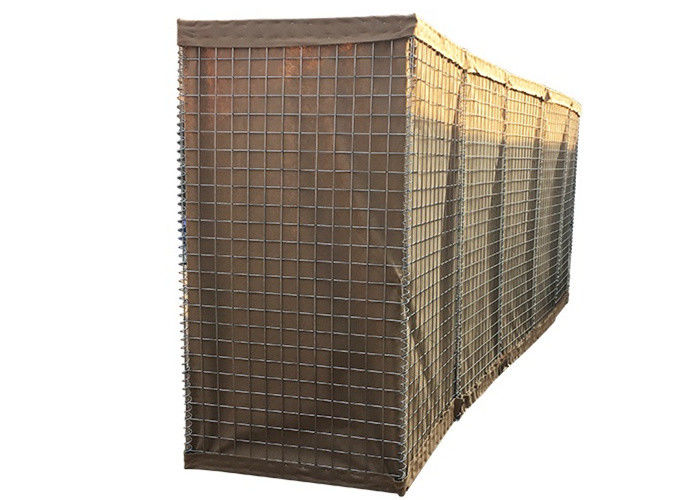

Hesco barrier Flood Protection Defensive security ABS Barrier
The Application for Welded Defensive Barriers:
1. Military Fortifications
Most Army Used Welded Defensive Barrier build up a Military Fortifications, Because it can stack on each other, You can change the width and height by your demands. More easy and flexible.
2. Shooting Range
Nowadays, A lot of people use Military Defensive Barrier to build a shooting range, because its High Strength Defense, more safety.
3. Perimeter Security
Denfesive Barriers can connected together use special joint pin, the length is not limited, they can connected in to a circle to protect something also form a long wall to prevent sand and storm.
Brief Introduction of Hesco barrier Flood Protection Defensive security ABS Barrier
1. Wire Diameter: 4.00mm
2. Mesh Size: 3" (76.2x76.2mm), Sometimes according to Panel size to adjust the Hole size.
3. Panel Size: 0.61x0.61M
4. Diameter of Spring: 4.0mm, which is used for connecting the panels,
5. Geotextile:heavy duty UV non-woven polypropylene;
6. Color: Grey and Military Green,Sand color etc.
7. Total Size: 0.61x0.61x1.22M
8. No. of Cells: 2 Cells
9. Finish: Hot dipped galvanized
10. Package: Packed in pallet, with Plastic Film or Shrink Film
The Technical Specifications from SX 1 to SX 19
| Welded Military Defensive Barrier |
| Model |
Height |
Width |
Length |
| SX-1 |
54"(1.37M) |
42"(1.06M) |
32'9"(10M) |
| SX-2 |
24"(0.61M) |
24"(0.61M) |
4'(1.22M) |
| SX-3 |
39"(1.00M) |
39"(1.00M) |
32'9"(10M) |
| SX-4 |
39"(1.00M) |
60"(1.52M) |
32'9"(10M) |
| SX-5 |
24"(0.61M) |
24"(0.61M) |
10'(3.05M) |
| SX-6 |
66"(1.68M_ |
24"(0.61M) |
10'(3.05M) |
| SX-7 |
87"(2.21M) |
84"(2.13M) |
91'(27.74M) |
| SX-8 |
54"(1.37M) |
48"(1.22M) |
32'9"(10M) |
| SX-9 |
39"(1.00M) |
30"(0.76M) |
30'(9.14M) |
| SX-10 |
87"(2.21M) |
60"(1.52M) |
100'(32.50M) |
| SX-11 |
48"(1.22M) |
12"(0.30M) |
4'(1.22M) |
| SX-12 |
84"(2.13M) |
42"(1.06M) |
108'(33M) |
| SX-19 |
108"(2.74M) |
42"(1.06M) |
10'5"(3.18M) |
operational principle
Used Spring to connect the mesh panel together into a rectangle container, which have many cells or single cell, Fill with sand,earth,cement, stone etc as a wall for protection fence.
Flood Control
1. Flood Prevention Barrier
2. Permanent or Semi-permanent Dike
3. Flood Control Retaining Wall
4. Protection Engineering of Seaside Area
5. Protecting Existing Structures
6. Coastal Erosion Control
The Advantages of Hesco barrier Flood Protection Defensive security ABS Barrier:
1. Lifetime
The unit must be made of a Wire Mesh basket which is manufactured from Galvanised coated, welded mesh. The mesh must be made of rust protected alloy materials.The Wire Mesh must have a guaranteed life of not less than 5 years while exposed to environment and 10 years when in store.
2. Collapsible
Mesh Panel is joint by spring which is a circle, Mesh Panle can turn 360° unobstructed, so, when shiping the goods, it is collapsible to save space.
3. Quick Displacement
When you want to use it in another place,Just to move it, It can use many times
4. Easy to repair
As a protection Wall to prevent Bullets and shells, there would be small part damage, Just use one piece of welded wire mesh panel insert into the earth and cover the damage part, it can also work long time.
