Defensive Bastion Barriers/River Protection Barriers with Green/Sand Geotextile In Burkina Faso

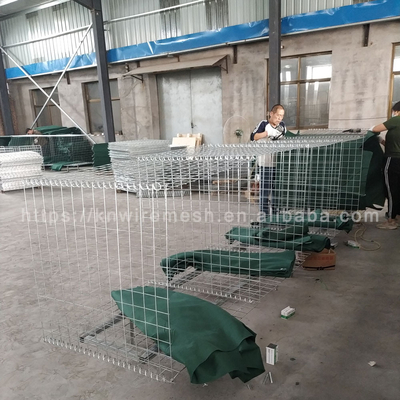

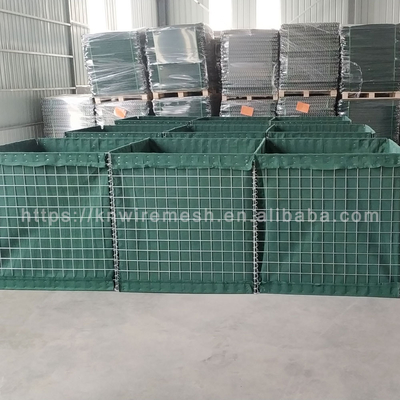

Defensive Barrier Bastion Sand Wall is a multi-cellular barrier system lined with heavy-duty, non-woven polypropylene geotextile and manufactured from welded Zinc-Aluminium coated steel mesh.
Known as a Gabion Barrier Bastion Sand Wall , it consists of collapsible wire mesh frames, lined with heavy duty canvas or other material. The boxes are then filled with dirt or sand , preferably with a front-end loader , to make a barrier resistant to small arms fire and shrapnel.
| Wire Diameter: |
5.0mm (Standard), 4.0mm |
| Mesh Hole: |
76.2*76.2mm (Standard), 80*80mm |
| Diameter of Spring: |
4.0mm |
| Diameter of Joint Pin: |
4.0mm |
| Cells per Set: |
1 cell, 2 cells, 3 cells, 4 cells, 5 cells |
| Color of Geotextile: |
Green, Beige, Brown, Sand Color |
| Weight of Geotextile: |
300GSM (Standard) |
Specifications of the Defensive Barrier:
| Unit Type |
Height (M)
|
Width (M)
|
Length (M)
|
Internal Cells |
| KN-01 |
1.37 |
1.08 |
10 |
9 |
| KN-02 |
0.61 |
0.61 |
1.22 |
2 |
| KN-03 |
1.0 |
1.0 |
10 |
10 |
| KN-04 |
1.0 |
1.5 |
6 |
6 |
| KN-05 |
0.61 |
0.61 |
3.05 |
5 |
| KN-06 |
1.68 |
0.61 |
3.05 |
5 |
| KN-07 |
2.21 |
2.13 |
8.25 |
4 |
| KN-08 |
1.37 |
1.22 |
10 |
9 |
| KN-09 |
1.0 |
0.76 |
6.84 |
9 |
| KN-10 |
2.13 |
1.52 |
7.6 |
5 |

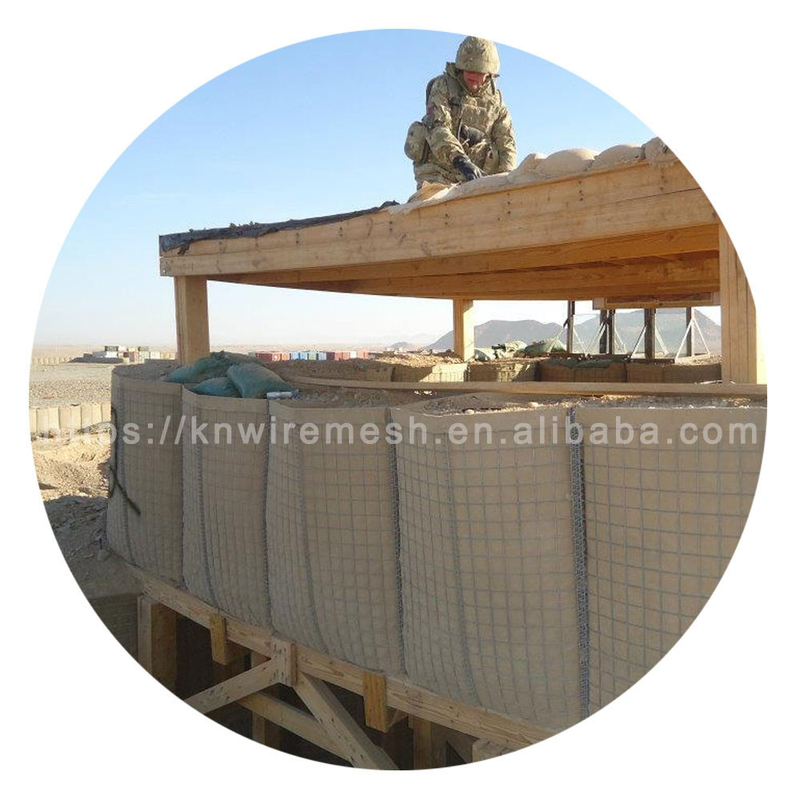

Defensive barriers come in many sizes. Most fences can also be stacked and packed into a compact set. Whether used as protective barriers or to define borders, security barriers and T-walls are used to protect equipment, facilities, vehicles and personnel in peacekeeping, humanitarian and operations.
Advantages of Defensive Barriers:
1. Secure & reliable
Once filled with soil, sand or gravel, forms a solid and strong barrier with exceptional strength and structural integrity to protect personnel and equipment from enemy fire. For example:
Two feet thick barriers can be used to stop rifle bullets and shell fragments.
Four feet thick barriers can prevent most car bombs.
Five feet thick barriers is ideal for preventing penetration and explosion fragments from rocket propelled grenade.
2. Convenient usage
Defensive bastion barrier can be used in separate cell or some cells joined together by joint pins to suit different needs of your projects. Almost any locally filling material can be used such as soil, sand, gravel, crushed rock and various other granular materials.
3. Labor saving design
Can be collapsed and stacked on pallets for easy package, handling and transport, so that it efficiently saves labor cost.
4. Quick & easy assembly
Provides the easiest deploy methods - just unfold it and fill it using minimal manpower or commonly available equipment. Previously, sandbag barrier is considered a slow undertaking as a person can only fill about 20 sandbags per hour. Yet our KNSCO do ten times the work.
Application of Defendive barriers:
Peripheral security and defense wall
Equipment protection
Shelter for personnel and materials
Observation point
Defensive firing position sentry
Explosive and contraband search area
Highway inspection station
Border crossing checkpoint
Protect existing structures
Flood control retaining wall beach erosion
Coastal Area Protection Project
