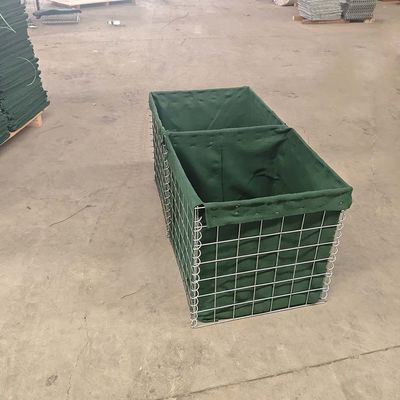

Heavy Duty Defensive Barriers Defensive Bag Gabion Bastions/Welded Mesh Barrier Bastion
Basic Properties
Place of Origin:
Hebei China
Brand Name:
SHUXIN
Certification:
CE SGS ISO COC
Model Number:
M1
Trading Properties
Minimum Order Quantity:
100
Price:
50-40USD
Standard Packaging:
wooden pallet
Delivery Time:
15 work days
Payment Terms:
L/C,T/T,Western Union,
Supply Ability:
500 units per week
Product Summary
Heavy Duty Defensive Barriers Defensive Bag Gabion Bastions/Welded Mesh Barrier Bastion Product Specifications Attribute Value Product Name Army Defensive Barrier Wall Flood Prevention Defense Wall Mesh Diameter 5.0mm, 4.0 mm Hesco Feature Easily Assembled Surface Treatment Galvanized Mesh Hole 3*3'...
Product Details
Highlight:
heavy duty defensive barriers
,welded mesh barrier bastion
,gabion bastion defensive bag
Product Name:
Heavy Duty Defensive Barriers Defensive Bag Gabion Bastions/Welded Mesh Barrier Bastion
Key Word:
Defensive Barrier
Mesh Diameter:
5.0mm, 4.0 Mm
Hesco Feature:
Easily Assembled
Surface Treatment:
Galvanized
Mesh Hole:
3*3'(7.62*7.62cm), 75mmx75mm
Type:
Welded Wire Mesh Defensive Barrier
Specification:
CE, BV, SGS
Usage:
Defensive
Shape:
Square
Wire Diameter:
3.0-6.0mm
Material:
Steel
Product Description
Heavy Duty Defensive Barriers Defensive Bag Gabion Bastions/Welded Mesh Barrier Bastion
Product Specifications
| Attribute | Value |
|---|---|
| Product Name | Army Defensive Barrier Wall Flood Prevention Defense Wall |
| Mesh Diameter | 5.0mm, 4.0 mm |
| Hesco Feature | Easily Assembled |
| Surface Treatment | Galvanized |
| Mesh Hole | 3*3'(7.62*7.62cm), 75mmx75mm |
| Type | Welded wire mesh Defensive Barrier |
| Specification | CE, BV, SGS |
| Usage | Defensive |
| Shape | Square |
| Wire Diameter | 3.0-6.0mm |
| Material | Steel |
Military Barrier System Overview
defensive barriers are collapsible wire mesh and geotextile containers, used for rapid construction of protective walls. Once filled with sand, soil or gravel, they create robust, scalable structures for flood control, blast protection, and perimeter security. Their modular design allows for fast deployment and versatile configurations, making them essential in military, disaster response, and construction projects.
Defensive Barrier Wall Specifications
| Model | Height | Width | Length | Internal Cells |
|---|---|---|---|---|
| SX-1 | 54"(1.37m) | 42"(1.06m) | 32'9"(10m) | 5+4=9 cells |
| SX-2 | 24"(0.61m) | 24"(0.61m) | 4'(1.22m) | 2 cells |
| SX-3 | 39"(1.0m) | 39"(1.0m) | 32'9"(10m) | 5+5=10 cells |
| SX-4 | 39"(1.0m) | 60"(1.52m) | 32'9"(10m) | 5+5=10 cells |
| SX-5 | 24"(0.61m) | 24"(0.61m) | 10'(3.05m) | 5 cells |
| SX-6 | 66"(1.68m) | 24"(0.61m) | 10'(3.05m) | 5 cells |
| SX-7 | 87"(2.21m) | 84"(2.13m) | 91'(27.74m) | 5+4+4=13 cells |
| SX-8 | 54"(1.37m) | 48"(1.22m) | 32'9"(10m) | 5+4=9 cells |
| SX-9 | 39"(1.0m) | 30"(0.76m) | 30'(9.14m) | 6+6=12 cells |
| SX-10 | 87"(2.21m) | 60"(1.52m) | 100'(30.5m) | 5+5+5+5=20 cells |
| SX-11 | 48"(1.22m) | 12"(0.30m) | 4'(1.22m) | 2 cells |
| SX-12 | 84"(2.13m) | 42"(1.06m) | 108'(33m) | 5+5+5+5+5+5=30 cells |
| SX-19 | 108"(2.74m) | 42"(1.06m) | 10'5"(3.18m) | 6 cells |
Applications
- Perimeter Security and Defence Wall
- Equipment Revetments
- Personnel and Material Bunkers
- Observation Points
- Defensive Firing Positions
- Guard Posts
- Explosives and Contraband Search Areas
- Highway Checkpoints
- Border Crossing Checkpoints
- Protecting Existing Structures
- Flood control retaining wall
- Coastal Erosion Protection
- Protection engineering of seaside area
Key Advantages
- Resists explosion shock waves and limits destructive effects within a defined range
- Lighter weight than reinforced concrete explosion-proof walls with easy loading/unloading
- Recyclable and reusable design for sustainable operations
- Available in 12 specifications with color options including earthy gray, earthy yellow, and grass green
- Flexible combination options for diverse applications and environments
