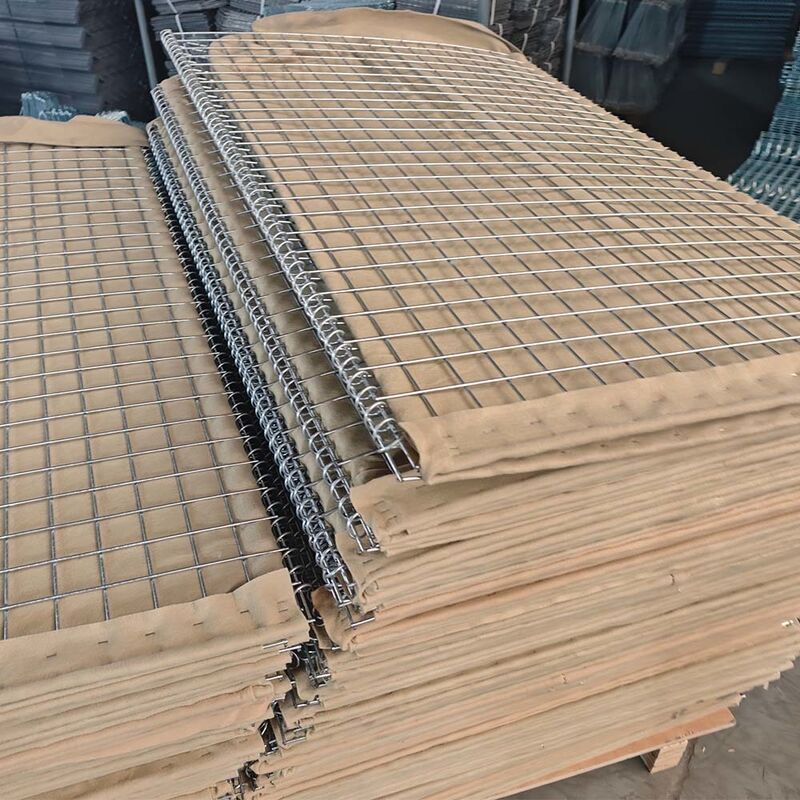

Heavy Galvanized Defense Barrier Bastion Explosion Proof Sand Wall

Large Image : Heavy Galvanized Defense Barrier Bastion Explosion Proof Sand Wall

Product Details:

Place of Origin:	Hebei China
Brand Name:	SHUXIN
Certification:	CE SGS ISO COC
Model Number:	M1

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	40-50USD
Packaging Details:	wooden pallet
Delivery Time:	15 work days
Payment Terms:	L/C,T/T,Western Union,MoneyGram
Supply Ability:	500 units per week

Contact Now

Detailed Product Description

Product Name:	Heavy Galvanized Defense Barrier Bastion Explosion Proof Sand Wall	Key Word:	Defensive Barrier
Mesh Hole:	33'(7.627.62cm), 75mmx75mm	Type:	Welded Wire Mesh Defensive Barrier
Wire Diameter:	5mm,4mm	Geotextile Density:	250g/sqm
Surface Treatment:	Hot Dip Galvanized, Galfan, Etc	Accessories:	Mesh Panel, Spring, Geotextile
Technology:	Assemble	Connection:	Use Hook Joint Together
Feature:	High Strength
Highlight:	heavy galvanized defense barrier , explosion proof sand wall , bastion defensive barrier

Heavy Galvanized Defense Barrier Bastion Explosion Proof Sand Wall

Military Barrier System Overview

The Defensive Bastion system revolutionizes containment by merging simplicity with robustness. Its modular, quick-assembly design allows diverse applications—from shielding infrastructure against natural forces to creating secure perimeters in conflict zones. By utilizing on-site fill materials, it delivers unparalleled efficiency, setting a new benchmark for adaptive protection across industries.

Defensive Barrier Wall Specifications

Model	Height	Width	Length	Internal Cells
SX-1	54"(1.37m)	42"(1.06m)	32'9"(10m)	5+4=9 cells
SX-2	24"(0.61m)	24"(0.61m)	4'(1.22m)	2 cells
SX-3	39"(1.0m)	39"(1.0m)	32'9"(10m)	5+5=10 cells
SX-4	39"(1.0m)	60"(1.52m)	32'9"(10m)	5+5=10 cells
SX-5	24"(0.61m)	24"(0.61m)	10'(3.05m)	5 cells
SX-6	66"(1.68m)	24"(0.61m)	10'(3.05m)	5 cells
SX-7	87"(2.21m)	84"(2.13m)	91'(27.74m)	5+4+4=13 cells
SX-8	54"(1.37m)	48"(1.22m)	32'9"(10m)	5+4=9 cells
SX-9	39"(1.0m)	30"(0.76m)	30'(9.14m)	6+6=12 cells
SX-10	87"(2.21m)	60"(1.52m)	100'(30.5m)	5+5+5+5=20 cells
SX-11	48"(1.22m)	12"(0.30m)	4'(1.22m)	2 cells
SX-12	84"(2.13m)	42"(1.06m)	108'(33m)	5+5+5+5+5+5=30 cells
SX-19	108"(2.74m)	42"(1.06m)	10'5"(3.18m)	6 cells

Applications

Rapid Setup - Deploy & fill with dirt by machine. Build massive walls in hours, not days.
Proven Protection - Earth-filled cells stop bullets, shrapnel & blasts. Customizable strength.
Cost & Labor Saver - Drastically reduces manpower and logistics versus traditional methods.
Modular & Flexible - Units connect and stack like blocks for any layout or terrain.
Military & Civilian Use - Essential for base defense, flood control, and construction sites.

Key Advantages

Resists explosion shock waves and limits destructive effects within a defined range
Lighter weight than reinforced concrete explosion-proof walls with easy loading/unloading
Recyclable and reusable design for sustainable operations
Available in 12 specifications with color options including earthy gray, earthy yellow, and grass green
Flexible combination options for diverse applications and environments
