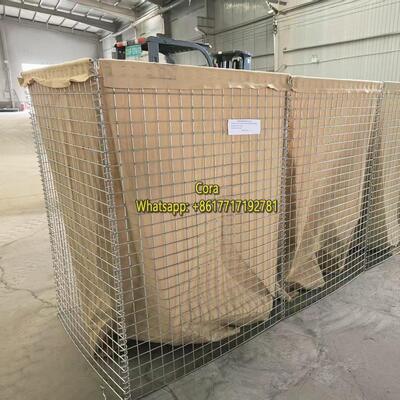

Hot Dip Galvanized Beige/Green Color Blast Mitigation Defensive Barriers

Hot Dip Galvanized Beige/Green Color Blast Mitigation Defensive Barriers

Large Image :  Hot Dip Galvanized Beige/Green Color Blast Mitigation Defensive Barriers

Product Details:
Place of Origin: CN-HB
Brand Name: SHUXIN
Certification: CE, ISO, SGS, SASO, PVOC,COC, FM A, FM E
Model Number: SX-1 to SX-19
Payment & Shipping Terms:
Minimum Order Quantity: 80 UNITS
Price: Negotiated
Packaging Details: Pallet
Delivery Time: 15 working days
Payment Terms: L/C,T/T,Western Union,MoneyGram,Paypal,T/A
Supply Ability: 500 Units per week
Detailed Product Description
Material: HDP Galvanized Wire Type: SX-3
Diameter Of Mesh: 4.0mm Mesh Hole: 3"
Color: Beige Or Military Green Geotextile Weight: 250 G/㎡
Highlight:

hot dip galvanized defensive barrier

,

beige green blast mitigation barrier

,

defensive barrier with blast protection

Blast Mitigation Defensive Barriers
Multi-Function Defensive Barrier for Shooting Range
CE / ISO 9000 Certified protective solution for military and peacekeeping installations
Defensive barriers (also termed sand barriers, military barriers or military fence systems) are efficient, cost-effective protective structures for military and peacekeeping applications, securing personnel, vehicles, facilities and equipment. Made by hot dipped galvanized mesh panel,  lined with geotexticle Cloth. Hailed as the most important advancement in field fortifications since World War II, they enable rapid deployment: a 10-meter wall can be installed in about 20 minutes with two personnel and one front loader, whereas sandbag construction of the same wall requires three times the fill material, eight workers and over eight hours.
Operational Principle
Spring-connected mesh panels form rectangular containers with multiple or single cells. Fill with sand, earth, cement, stone, or other materials to create protective walls and fencing systems.
Technical Specifications
  • Wire Diameter: 4-5mm
  • Mesh Size: 3" (75x75mm, 50x50mm, 80x80mm)
  • Panel Size: 13 standard sizes for comprehensive security protection
  • Geotextile: Heavy-duty non-woven polypropylene
  • Color Options: Grey, Military Green, Sand color
  • Finish: Hot-dipped galvanized, Galfan wire

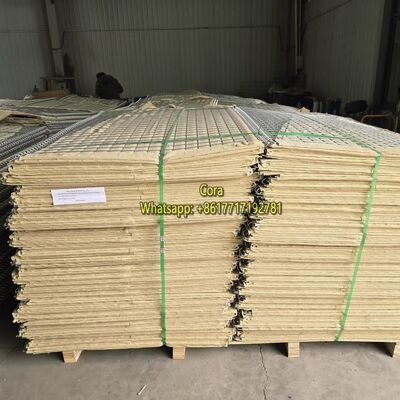

  • Packing: Palletized for secure transport
Product Dimensions
Product Height Width Length
MIL1 5442 R 54" (1.37M) 42" (1.06M) 32'9" (10M)
MIL2 2424 R 24" (0.61M) 24" (0.61M) 4' (1.22M)
MIL3 3939 R 39" (1.00M) 39" (1.00M) 32'9" (10M)
MIL4 3960 R 39" (1.00M) 60" (1.52M) 32'9" (10M)
MIL5 2424 R 24" (0.61M) 24" (0.61M) 10' (3.05M)
MIL6 6624 R 66" (1.68M) 24" (0.61M) 10' (3.05M)
MIL7 8784 R 87" (2.21M) 84" (2.13M) 91' (27.74M)
MIL8 5448 R 54" (1.37M) 48" (1.22M) 32'9" (10M)
MIL9 3930 R 39" (1.00M) 30" (0.76M) 30" (9.14M)
MIL10 8760 R 87" (2.21M) 60" (1.52M) 100' (32.50M)
MIL11 4812 R 48" (1.22M) 12" (0.30M) 4' (1.22M)
MIL12 8442 R 84" (2.13M) 42" (1.06M) 108' (33M)
Applications
Flood Control
Increasingly popular for coastal regions and flood-prone areas, welded defensive barriers provide effective flood protection solutions for countries near coastlines.
Hot Dip Galvanized Beige/Green Color Blast Mitigation Defensive Barriers 0
Protection Walls
Ideal for residential and commercial protection walls, offering lightweight construction with fast, easy operation for rapid wall assembly.
Key Advantages
Easy Installation
Simply position in desired location, unfold, and fill with sand or earth. Installation can be completed by just 2-3 personnel.
Anti-Corrosion
Manufactured from hot-dipped galvanized wire for exceptional durability, providing 10+ years of reliable outdoor protection performance.
Hot Dip Galvanized Beige/Green Color Blast Mitigation Defensive Barriers 1
