Galvanized Mil3 Sand Wall Barrier Blast Wall For Flood Mil6 Gabion Welded Defensive Barriers
Basic Properties
Place of Origin:
CN-HB
Brand Name:
KN/DEFENSIVE BARRIER
Certification:
CE, ISO, SGS, SASO, PVOC,COC, FM A, FM E
Model Number:
SX-1 to SX-19
Trading Properties
Minimum Order Quantity:
100 UNITS
Price:
Negotiated
Standard Packaging:
Pallet
Delivery Time:
15 working days
Payment Terms:
L/C,T/T,Western Union,,Paypal,T/A
Supply Ability:
500 Units per week
Product Summary
Galvanized Mil3 Sand Wall Barrier Blast Wall For Flood Mil6 Gabion Welded Defensive Barriers Constructed from high-strength welded wire mesh and non-woven polypropylene geotextile, the barrier provides reliable protection for personnel, vehicles, structures, and equipment. Available in standard and ...
Product Details
Highlight:
galvanized defensive barrier sand wall
,welded gabion blast wall
,flood resistant mil3 barrier
Features:
Strong, Anti-Rust
Material:
Galvanized Wire, Q195, Low Carbion Steel Wire
Type:
MIL1 - MIL19
Diameter Of Mesh:
4.0mm, 5.0mm
Mesh Hole:
3", 8*8cm, 10*10cm
Color:
Beige Or Military Green
Geotextile Weight:
250 G/㎡, 220g, 300g, 350g
Usage:
Defensive Sand Wall Barrier Bastion
Yeas Of Experience:
15 Years
Sample:
Free
Product Description
Galvanized Mil3 Sand Wall Barrier Blast Wall For Flood Mil6 Gabion Welded Defensive Barriers
Constructed from high-strength welded wire mesh and non-woven polypropylene geotextile, the barrier provides reliable protection for personnel, vehicles, structures, and equipment. Available in standard and reusable designs to suit diverse operational scenarios, this system combines robust performance, quick installation, and strong adaptability for military defense, emergency flood control, and temporary perimeter protection.
- Wire Diameter: 4-5mm
- Mesh Size: 3" (75x75mm, 50x50mm) 80x80mm
- Panel Size: 13 type sizes for any security protection and sudden burst attacks
- Geotextile: Heavy duty non-woven polypropylene, weight from 220g - 350g
- Color: Grey, Military Green, Sand color etc.
- Finish: Hot dipped galvanized, Galfan wire
- Packing: Packed in pallet
- Accessories: Joint Pin and Spiral Wire
Product Specification List
| PRODUCT | HEIGHT | WIDTH | LENGTH |
|---|---|---|---|
| MIL1 5442 R | 54''(1.37M) | 42''(1.06M) | 32'9''(10M) |
| MIL2 2424 R | 24'' (0.61M) | 24''(0.61M) | 4'(1.22M) |
| MIL3 3939 R | 39''(1.00M) | 39''(1.00M) | 32'.9''(10M) |
| MIL4 3960 R | 39''(1.00M) | 60''(1.52M) | 32'.9''(10M) |
| MIL5 2424 R | 24''(0.61M) | 24''(0.61M) | 10'(3.05M) |
| MIL6 6624 R | 66''(1.68M) | 24''(0.61M) | 10'(3.05M) |
| MIL7 8784 R | 87''(2.21M) | 84''(2.13M) | 91'(27.74M) |
| MIL8 5448 R | 54''(1.37M) | 48''(1.22M) | 32'.9''(10M) |
| MIL9 3930 R | 39''(1.00M) | 30''(0.76M) | 30''(9.14M) |
| MIL10 8760 R | 87''(2.21M) | 60''(1.52M) | 100'(32.50M) |
| MIL11 4812 R | 48''(1.22M) | 12''(0.30M) | 4'(1.22M) |
| MIL12 8442 R | 84''(2.13M) | 42''(1.06M) | 108'(33M) |
Connection System
The defensive barrier is connected with spiral wire, allowing the gabion mesh box to be folded up for easy loading and transportation. When deployed, it can be quickly shaped, filled with soil or stones, and put into application. The springs are all made of high strength steel wire, greatly improving the sturdiness of the defensive barrier.

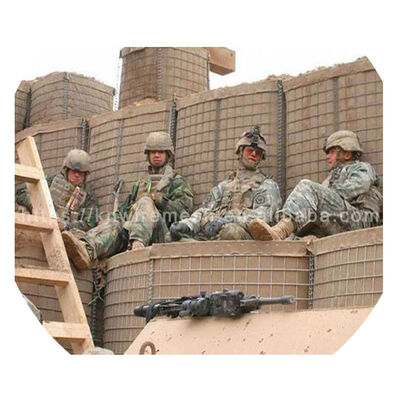

- Perimeter Security and Defence Wall
- Equipment Revetments
- Personnel and Material Bunkers
- Observation Points
- Defensive Firing Positions
- Guard Posts
- Explosives and Contraband Search Areas
- Highway Checkpoints
- Border Crossing Checkpoints
- Protecting Existing Structures
- Flood Control Retaining Wall
- Protection Engineering of Seaside Area
