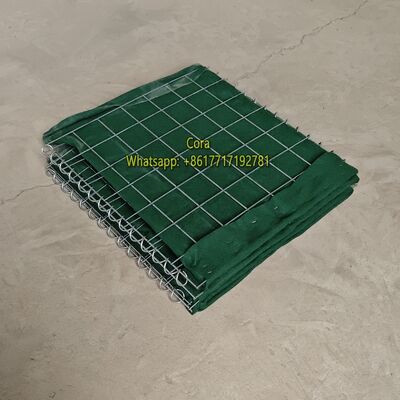

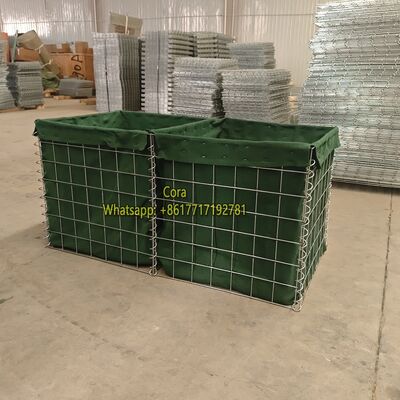

High-Strength MIL2 Welded Gabion Box Lined With Geotextile Cloth Used For Defensive Bastion Barriers
Ground Defensive Barrier Professor | China Military Barrier Manufacturer
Defensive barriers serve as heavy-duty security measures intended to protect critical zones and regulate entry. Built with durable welded steel or modular components, they are extensively applied across industrial, commercial, and high-security facilities to deter unauthorized access, vehicle intrusion, and vandalism.
KN Wire Mesh is a leading China Military Barrier Manufacturer, providing a wide range of Military Defensive Barriers and Military Sand Wall Defensive Barriers designed for rapid deployment, high durability, and reliable protection in military, security, and emergency applications.
Our defensive barriers are engineered with high-strength welded steel mesh combined with durable geotextile fabric, forming modular units that can be filled with sand, soil, or gravel to create flexible, scalable, and effective protective walls. These solutions are trusted worldwide for border security, military bases, airports, ports, and critical infrastructure protection.
Brief Introduction for Defensive Bastion Barriers Wall:
Material: Galvanized steel wire or Galfan / zinc-5%aluminum wire
Service Life: 15-20 years
Wire diameter: 3.0mm- 6.0mm
Aperture: 3" (76.2mm × 76.2mm ) Standard
Color of geotextile: Grey and Military, Beige, Sand Color and so on.
Weight of Geotextile: 250 g/m2 or 300 g/m2
Finish:hot dipped galvanized,Galfan wire.
Welded method:welded after galvanized or galvanized after welded
The Standard Technical Specifications from KN 1 to KN 19
| Welded Military Fortress |
| Model |
Height |
Width |
Length |
| KN-1 |
54"(1.37M) |
42"(1.06M) |
32'9"(10M) |
| KN-2 |
24"(0.61M) |
24"(0.61M) |
4'(1.22M) |
| KN-3 |
39"(1.00M) |
39"(1.00M) |
32'9"(10M) |
| KN-4 |
39"(1.00M) |
60"(1.52M) |
32'9"(10M) |
| KN-5 |
24"(0.61M) |
24"(0.61M) |
10'(3.05M) |
| KN-6 |
66"(1.68M_ |
24"(0.61M) |
10'(3.05M) |
| KN-7 |
87"(2.21M) |
84"(2.13M) |
91'(27.74M) |
| KN-8 |
54"(1.37M) |
48"(1.22M) |
32'9"(10M) |
| KN-9 |
39"(1.00M) |
30"(0.76M) |
30'(9.14M) |
| KN-10 |
87"(2.21M) |
60"(1.52M) |
100'(32.50M) |
| KN-11 |
48"(1.22M) |
12"(0.30M) |
4'(1.22M) |
| KN-12 |
84"(2.13M) |
42"(1.06M) |
108'(33M) |
| KN-19 |
108"(2.74M) |
42"(1.06M) |
10'5"(3.18M) |
The Application for Defensive Bastion Barriers protection Retaining Wall
Military Defense
1. Perimeter Security Barrier and Defence Wall
2. Temporary Fort and Command Post
3. Observation Points and Border Checkpoints
4. Military Barrier Fortification System
5. Equipment Revetment
6. Explosives and Contraband Search Areas
7. Guard Posts
8. Personnel and Material Bunkers
9. Shooting Range
Flood Control
1. Flood Prevention Barrier
2. Permanent or Semi-permanent Dike
3. Flood Control Retaining Wall
4. Protection Engineering of Seaside Area
5. Protecting Existing Structures
The Advantages of Defensive Protection Barriers:
1. Ultra-Fast Deployment: Critical for Time-Limited Frontline Missions
It can be quickly unfolded and assembled manually with minimal manpower, without professional construction skills or large machinery. Units are connected via dedicated high-strength joint pins, allowing flexible extension into continuous defensive walls, bunkers, perimeter barriers or personnel shelter enclosures. In emergency frontline scenarios, a complete defensive bastion system can be set up in just 1/10 of the time of traditional sandbag stacking, enabling troops to build a solid defensive line before enemy attacks or ground offensives (such as the cross-border ground incursions launched by Iranian Kurdish anti-government armed groups from northern Iraq into Iran) escalate.
2. Extreme Environmental Adaptability: For Harsh Middle East Battlefield Conditions
The product is treated with professional anti-corrosion, anti-rust and UV-resistant coatings, capable of withstanding the harsh desert climate, high temperatures, sandstorms and humidity of the Middle East. It maintains structural integrity and protective performance in long-term field deployment, without easy deformation, rust or damage. The modular design allows for flexible disassembly, relocation and reuse, adapting to frequent troop movements and tactical position adjustments in mobile warfare – a critical advantage in prolonged, high-intensity conflict zones.
