5mm MIL7 Heavy Duty Hot Dipped Galvanized Military Defensive Bastion Barriers

Basic Properties
Place of Origin: CN
Brand Name: KN
Certification: CE, ISO, SGS, SASO, PVOC,COC, FM A, FM E, CO
Model Number: MIL1 - MIL 19
Trading Properties
Minimum Order Quantity: 100 UNITS
Price: Negotiated
Standard Packaging: Pallet
Delivery Time: 15 working days
Payment Terms: L/C,T/T,Western Union,,Paypal,T/A
Supply Ability: 200 Units per week
Product Summary
5mm MIL7 Heavy Duty Hot Dipped Galvanized Military Defensive Bastion Barriers Source Factory Hebei KN Wire Mesh is a leading source manufacturer specializing in the R&D and production of defensive barriers for over 10 years. Backed by large-scale production capacity, strict quality control and ...

Product Details

Highlight:

5mm MIL7 military barrier

,

hot dipped galvanized defensive barrier

,

heavy duty military bastion barriers

Raw Material: Galfan Wire, Hot Dipped Galvanized Wire, Low Carbon Steel Wire
Geotextile: 250 - 300 G/㎡ Standard Filter Cloth
Mesh Diameter: 4.0 / 5.0mm Diameter
Apeture: 3" (76.2mm×76.2mm)
Color: Military Green, Sand Color
Accessories: Staple, Joint Pin
Brand: KESCO, Not HESCO
Sample: Free Sample
Stock: Some Types Have Stock, Welcome To Inquiry
Key Words: Military Defensive Barrier, Hesco Barrier
Production Time: 10 Days
Design: Free
Product Description

5mm MIL7 Heavy Duty Hot Dipped Galvanized Military Defensive Bastion Barriers




Source Factory



Hebei KN Wire Mesh is a leading source manufacturer specializing in the R&D and production of defensive barriers for over 10 years. Backed by large-scale production capacity, strict quality control and significant cost advantages, we deliver reliable, quick-to-install defensive and protective solutions for military, flood control, property protection and engineering projects across the globe.

5mm MIL7 Heavy Duty Hot Dipped Galvanized Military Defensive Bastion Barriers

Why Governments & Clients Choose to Cooperate with Hebei KN Wire Mesh

  • Cost Efficiency

           Bulk Savings: Orders of 400+ units qualify for 15–30% volume discounts.
           Reusability: 95% of barriers can be redeployed after pressure-washing, cutting long-term costs compared with concrete structures.

  • Customization & Compliance

           Threat-Based Engineering: Provide your blast or flood protection requirements, and we will deliver designs compliant with ASTM F2656.

  • Global Logistics

           Fast Shipping: Folded barriers occupy 80% less space.



1. Flood Defense for Communities

  • City Protection: During the 2019 Watertown, South Dakota floods, Hesco barriers were deployed to safeguard the city from rising waters
  • Mobile Home Parks: In Iowa City, a mile-long Hesco flood wall was installed to protect Cole and Thatcher Mobile Home Parks
  • Airport Security: Bangkok's Don Mueang Airport used Hesco barriers during severe flooding, erected by the Royal Thai Army
  • Urban Infrastructure: Many cities use them to protect utilities, subway entrances, and critical infrastructure during flash floods

2. Coastal & Riverbank Erosion Control

  • Waterfront Homes: Protect properties from shoreline erosion, reducing soil loss by up to 90%
  • Riverbanks: Tested effective on 35° inclines, stabilizing slopes prone to washing away
  • Marsh & Beach Protection: The original design purpose (created by British ex-miner Jimi Heselden) was for coastal erosion control
  • Lakeside Development: Used to prevent shoreline collapse in residential areas along lakeshores

3. Construction & Industrial Applications

  • Worksite Perimeters: Create secure fencing around construction sites that resists wind and falling debris
  • Sound Barriers: Instant noise reduction walls along residential construction zones
  • Traffic Management: Temporary barriers for highway construction, directing vehicles safely around work zones
  • Industrial Safety: Separate hazardous zones in manufacturing plants while containing pollutants
  • Warehouse Protection: Defend storage facilities from flood damage during rainy seasons



Attribute Value
Raw Material Hot dipped galvanized wire
Geotextile 250 - 300 g/㎡ Standard
Mesh Diameter 4.0 / 5.0mm Diameter
Aperture 3" (76.2mm×76.2mm)
Color Military Green, sand color
Accessories Staple, Joint Pin
Brand KESCO, not HESCO
Sample Free sample available
Stock Some types in stock - welcome to inquire
The Hesco Barrier Guard Tower is constructed from galvanized welded boxes, combining rectangular mesh wire with canvas-draped panels to create versatile base defense structures. These units serve as essential building blocks for military and police security installations.
Designed for rapid deployment, these barriers can be installed by just 2-3 personnel, making them ideal for creating shelters or guard towers quickly in field conditions.
Standard Technical Specifications (KN1 to KN19)



Model Height Width Length
KN-1 54" (1.37M) 42" (1.06M) 32'9" (10M)
KN-2 24" (0.61M) 24" (0.61M) 4' (1.22M)
NK-3 39" (1.00M) 39" (1.00M) 32'9" (10M)
KN-4 39" (1.00M) 60" (1.52M) 32'9" (10M)
KN-5 24" (0.61M) 24" (0.61M) 10' (3.05M)
KN-6 66" (1.68M) 24" (0.61M) 10' (3.05M)
KN-7 87" (2.21M) 84" (2.13M) 91' (27.74M)
KN-8 54" (1.37M) 48" (1.22M) 32'9" (10M)
KN-9 39" (1.00M) 30" (0.76M) 30' (9.14M)
KN-10 87" (2.21M) 60" (1.52M) 100' (32.50M)
KN-11 48" (1.22M) 12" (0.30M) 4' (1.22M)
KN-12 84" (2.13M) 42" (1.06M) 108' (33M)
KN-19 108" (2.74M) 42" (1.06M) 10'5" (3.18M)
Primary Applications of Welded Gabion Barrier
Flood Control Solutions:
  • Flood Prevention Barrier: From simple perimeter walls to complex base infrastructure, our products provide rapid expeditionary protection Hesco barrier used as flood prevention barrier
  • Permanent or Semi-permanent Dike: Effective barriers against flooding in both temporary and permanent installations Military defensive barriers serving as flood control dikes
  • Flood Control Retaining Wall: When filled with sand and earth, these gabion boxes form sturdy retaining walls against floodwaters Gabion boxes used as flood control retaining walls
  • Coastal Protection: Increasingly used in seaside areas as protective fencing against erosion Hesco barriers protecting coastal areas
  • Existing Structure Protection: Safeguards buildings and infrastructure from environmental damage
  • Coastal Erosion Control: Effective solution for stabilizing shorelines and preventing land loss
Key Advantages of Welded Defensive Barriers
1. Extended Lifetime:

Constructed from galvanized, rust-protected alloy wire mesh with a guaranteed minimum lifespan of 5 years in exposed environments and 10 years when stored properly.

2. Collapsible Design:

Mesh panels connected by spring joints allow 360° rotation, enabling compact storage and transportation while maintaining structural integrity.

3. Superior Protection:

Combination of heavy-duty mesh panels with thick geotextile fabric creates exceptionally strong protective barriers for various applications.

Product & Manufacturing Showcase

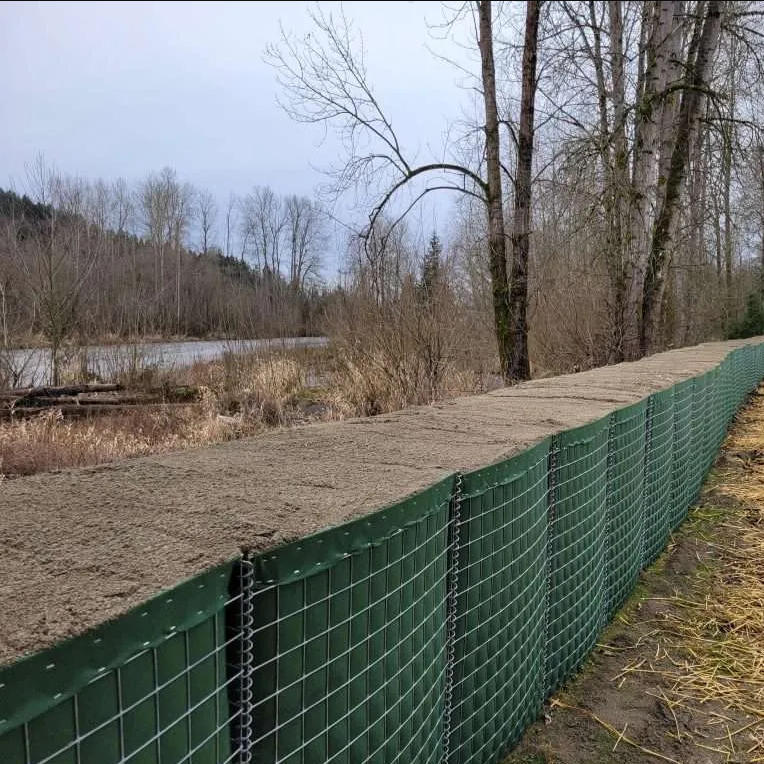

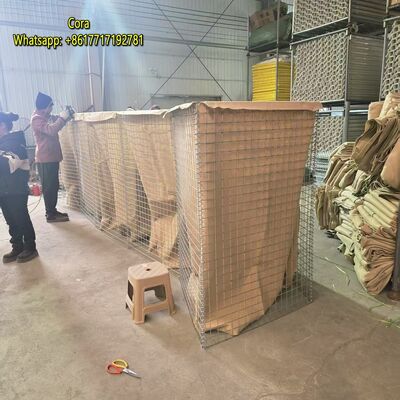

Close-up view of welded gabion barrier construction Military defensive barrier installation demonstration Completed hesco barrier installation in field conditions Quality control inspection of defensive barriers Manufacturing process of galvanized wire mesh panels Finished hesco barrier units ready for shipment
