Welcome to Hebei KN Wire Mesh Co., Ltd.
+86 177 1003 8900

Factory Defensive Barriers Defensive Bag Gabion Bastions/Welded Mesh Barrier Bastion

Basic Properties
Place of Origin: China, Hebei Provence
Brand Name: KN
Certification: ISO CE
Model Number: KN02
Trading Properties
Minimum Order Quantity: 10 pcs
Price: USD 28.98-88.98
Standard Packaging: Customized
Delivery Time: 12-20 days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 5000 pcs/ month
Product Summary
Factory Defensive Barriers Defensive Bag Gabion Bastions/Welded Mesh Barrier Bastion Production description Defensive barriers are also known as Gabion Blast Wall, Defensive Barrier, Defensive Bastion, etc. It is a prefabricatedmulti-cellular system made of Golfan/hot-dip galvanized welded gabion, ...

Product Details

Highlight:

welded mesh barrier bastion

,

military defensive gabion bastion

,

factory defensive barriers with warranty

Product Name: Defensive Barrier
Material: Q195 Steel Wire Mesh
Size: Customized
Wire Diameter: 4-6mm
Mesh Hole: 50*50mm,75*75mm,100*100mm...customized
Geotextile Gramweight: 300g/㎡
Geotextile Color: Green, Sandy Color..
Place Of Origin: Hebei Provence,China
Delivery Time: 12-20days
Brand Name: Hebei KN
Product Description

Factory Defensive Barriers Defensive Bag Gabion Bastions/Welded Mesh Barrier Bastion


Production description

Defensive barriers are also known as Gabion Blast Wall, Defensive Barrier, Defensive Bastion, etc. It is a prefabricated
multi-cellular system made of Golfan/hot-dip galvanized welded gabion, lined with non-woven geotextiles.It can be filled with sand,earth, cement, stones and are widely used in flood control.

Factory Defensive Barriers Defensive Bag Gabion Bastions/Welded Mesh Barrier Bastion


Product details

PRODUCT ITERM NO.
HEIGHT
WIDTH
LENGTH
CELLS NO.
KN 1
54''(1.37M)
42''(1.06M)
32'9''(10M)
5+4=9 cells
KN 2
24'' (0.61M)
24''(0.61M)
4'(1.22M)
2 cells
KN 3
39''(1.00M)
39''(1.00M)
32'.9''(10M)
5+5=10 cells
KN 4
39''(1.00M)
60''(1.52M)
32'.9''(10M)
5×2+5×2=20 cells
KN 5
24''(0.61M)
24''(0.61M)
10'(3.05M)
5 cells
KN 6
66''(1.68M)
24''(0.61M)
10'(3.05M)
5 cells
KN 7
87''(2.21M)
84''(2.13M)
91'(27.74M)
5+4+4=13 cells
KN 8
54''(1.37M)
48''(1.22M)
32'.9''(10M)
5+4=9 cells
KN 9
39''(1.00M)
30''(0.76M)
30'(9.14M)
6+6=12 cells
KN 10
87''(2.21M)
60''(1.52M)
100'(30.50M)
5+5+5+5=20 cells
KN 11
48''(1.22M)
12''(0.30M)
4'(1.22M)
2 cells
KN 12
84"(2.13M)
42"(1.06M)
108"(33M)
5+5+5+5+5+5=30 cells
KN 19
108''(2.74M)
42"(1.06M)
10'5'(3.18M)
6 cells


Factory Defensive Barriers Defensive Bag Gabion Bastions/Welded Mesh Barrier Bastion

Factory Defensive Barriers Defensive Bag Gabion Bastions/Welded Mesh Barrier Bastion

Factory Defensive Barriers Defensive Bag Gabion Bastions/Welded Mesh Barrier Bastion


Workshop

Factory Defensive Barriers Defensive Bag Gabion Bastions/Welded Mesh Barrier Bastion

Factory Defensive Barriers Defensive Bag Gabion Bastions/Welded Mesh Barrier Bastion

Factory Defensive Barriers Defensive Bag Gabion Bastions/Welded Mesh Barrier Bastion



Application

1)Perimeter Security and Defence Walls
2) Protecting Existing Structures
3) Explosives and Contraband Search Areas
4) Protection engineering of seaside area
5)Defensive Firing Positions

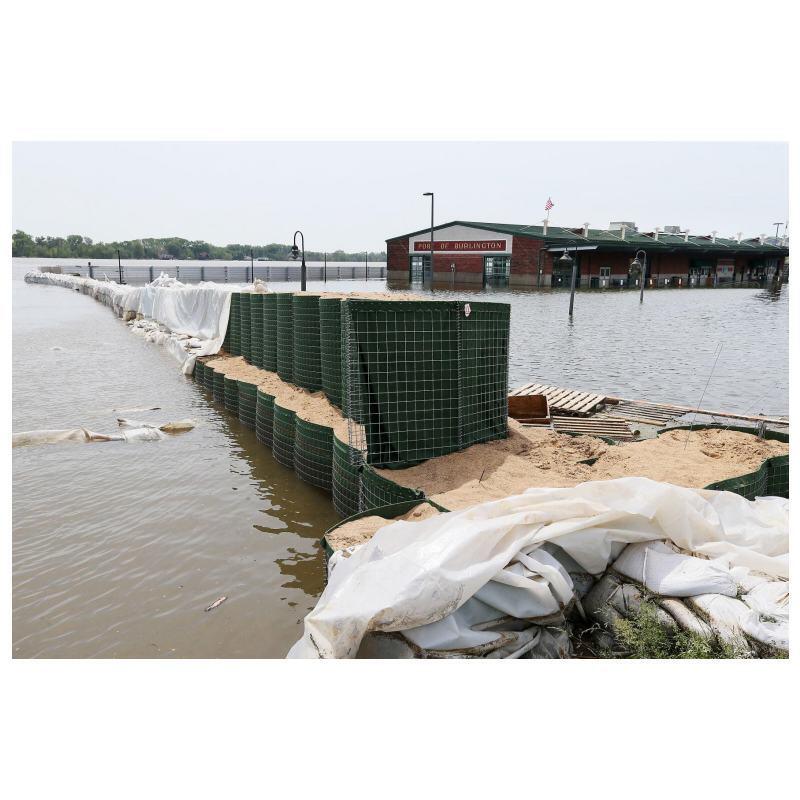

6)Flood contro retaining wall

Factory Defensive Barriers Defensive Bag Gabion Bastions/Welded Mesh Barrier Bastion
