High Safety Galvanized Barrier Sand Bag Gabion Wall Defensive Military Barrier For Sale

Basic Properties
Place of Origin: CN
Brand Name: KN
Certification: CE, ISO, SGS, SASO, PVOC,COC, FM A, FM E, CO
Model Number: MIL1 - MIL 19
Trading Properties
Minimum Order Quantity: 100 UNITS
Price: Negotiated
Standard Packaging: Pallet
Delivery Time: 15 working days
Payment Terms: L/C,T/T,Western Union,,Paypal,T/A
Supply Ability: 200 Units per week
Product Summary
High Safety Galvanized Barrier Sand Bag Gabion Wall Defensive Military Barrier For Sale Known as a Military Gabion Barrier Bastion Sand Wall , it consists of collapsible wire mesh frames, lined with heavy duty canvas or other material. The boxes are then filled with dirt or sand , preferably with a ...

Product Details

Highlight:

galvanized military barrier sand bags

,

high safety gabion wall barrier

,

defensive galvanized sand bag barrier

Raw Material: Galfan Wire, Hot Dipped Galvanized Wire, Low Carbon Steel Wire
Geotextile: 250 - 300 G/㎡ Standard Filter Cloth
Mesh Diameter: 4.0 / 5.0mm Diameter
Apeture: 3" (76.2mm×76.2mm)
Color: Military Green, Sand Color
Accessories: Staple, Joint Pin
Stock: Some Types Have Stock, Welcome To Inquiry
Key Words: Military Defensive Barrier, Hesco Barrier
Product Description

High Safety Galvanized Barrier Sand Bag Gabion Wall Defensive Military Barrier For Sale

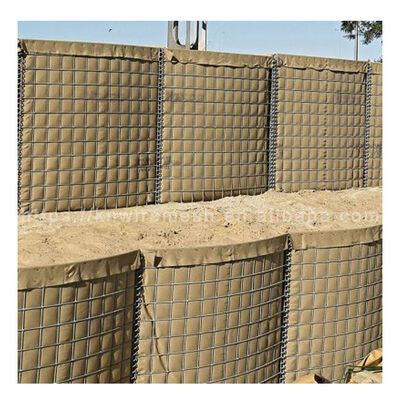

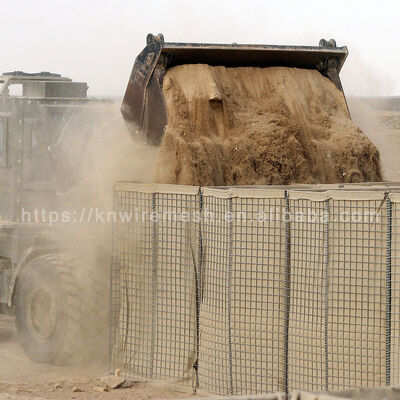

Known as a Military Gabion Barrier Bastion Sand Wall , it consists of collapsible wire mesh frames, lined with heavy duty canvas or other material. The boxes are then filled with dirt or sand , preferably with a front-end loader , to make a barrier resistant to small arms fire and shrapnel.

Military Defensive Barrier, It is not only applicable for military use, but also for flood control and daily protection of property. Featuring easy and quick installation, it uses widely available filling materials such as soil and sand. It can serve as a protective barrier for a full range of sites, from large companies and factories to small hotels and residences.



Application of Defensive Military Barriers:

1. Flood Defense for Communities

  • City Protection: During the 2019 Watertown, South Dakota floods, Hesco barriers were deployed to safeguard the city from rising waters

  • Mobile Home Parks: In Iowa City, a mile-long Hesco flood wall was installed to protect Cole and Thatcher Mobile Home Parks

  • Airport Security: Bangkok's Don Mueang Airport used Hesco barriers during severe flooding, erected by the Royal Thai Army

  • Urban Infrastructure: Many cities use them to protect utilities, subway entrances, and critical infrastructure during flash floods

2. Coastal & Riverbank Erosion Control

  • Waterfront Homes: Protect properties from shoreline erosion, reducing soil loss by up to 90%

  • Riverbanks: Tested effective on 35° inclines, stabilizing slopes prone to washing away

  • Marsh & Beach Protection: The original design purpose (created by British ex-miner Jimi Heselden) was for coastal erosion control

  • Lakeside Development: Used to prevent shoreline collapse in residential areas along lakeshores

3. Construction & Industrial Applications

  • Worksite Perimeters: Create secure fencing around construction sites that resists wind and falling debris

  • Sound Barriers: Instant noise reduction walls along residential construction zones

  • Traffic Management: Temporary barriers for highway construction, directing vehicles safely around work zones

  • Industrial Safety: Separate hazardous zones in manufacturing plants while containing pollutants

  • Warehouse Protection: Defend storage facilities from flood damage during rainy seasons​Gabion boxes used as flood control retaining walls

 Specifications (KN1 to KN19)
Model Height Width Length
KN-1 54" (1.37M) 42" (1.06M) 32'9" (10M)
KN-2 24" (0.61M) 24" (0.61M) 4' (1.22M)
NK-3 39" (1.00M) 39" (1.00M) 32'9" (10M)
KN-4 39" (1.00M) 60" (1.52M) 32'9" (10M)
KN-5 24" (0.61M) 24" (0.61M) 10' (3.05M)
KN-6 66" (1.68M) 24" (0.61M) 10' (3.05M)
KN-7 87" (2.21M) 84" (2.13M) 91' (27.74M)
KN-8 54" (1.37M) 48" (1.22M) 32'9" (10M)
KN-9 39" (1.00M) 30" (0.76M) 30' (9.14M)
KN-10 87" (2.21M) 60" (1.52M) 100' (32.50M)
KN-11 48" (1.22M) 12" (0.30M) 4' (1.22M)
KN-12 84" (2.13M) 42" (1.06M) 108' (33M)
KN-19 108" (2.74M) 42" (1.06M) 10'5" (3.18M)

Advantages of Welded Defensive Military Barriers

1. Extended Life time:

Constructed from galvanized, rust-protected alloy wire mesh with a guaranteed minimum lifespan of 5 years in exposed environments and 10 years when stored properly.

2. Collapsible Design:

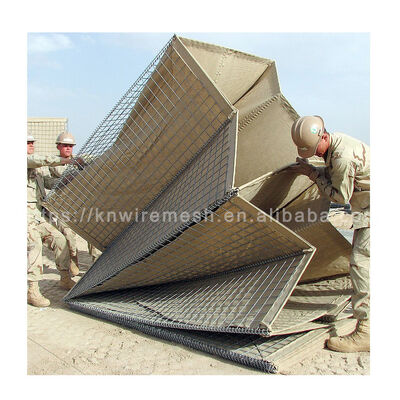

Mesh panels connected by spring joints allow 360° rotation, enabling compact storage and transportation while maintaining structural integrity.

3. Superior Protection:

Combination of heavy-duty mesh panels with thick geotextile fabric creates exceptionally strong protective barriers for various applications.

High Safety Galvanized Barrier Sand Bag Gabion Wall Defensive Military Barrier For Sale
