AlZn Hot Dipped Galvanized Portable Collapsible Protective Wall Baskets for Defensive Barrier
Portable Collapsible Protective Wall Baskets, galvanised welded mesh frame (2 cells per set) of size 1.22 x 0.61m x 0.75m (Length 4', Width 2' and ht 2.5').
Mesh will be made of 4mm diamater, Hot dip galvanised low carbon steel wire confirming to BS 1052.
145 GSM Aluzinc coated prime quality raw material confirming to BS/EN 10244-2. Wire Tensile 540-770 N/MM2. 100% defect free.
Basket frame mesh size is 3 inch. Mesh frame edge will be spiral hinged through 20mm diasprial made of 4mm dia galvanised stretchable wire for joining to ensure easy folding and unfolding and 2 feet in length after folding.

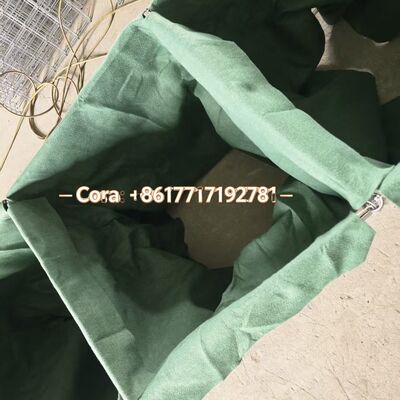

The cage box will have inner lining of non woven geotextile will be more than2mm thick with 250GSM in heavy duty non-woven polypropylene.
Our Defensive Barrier meet all above tender Specification, as leader manufacturer of Defensive Barrier, We directly or via trading company export our goods all over the world, especically in Afirca and Asia Area.
Operational Principle

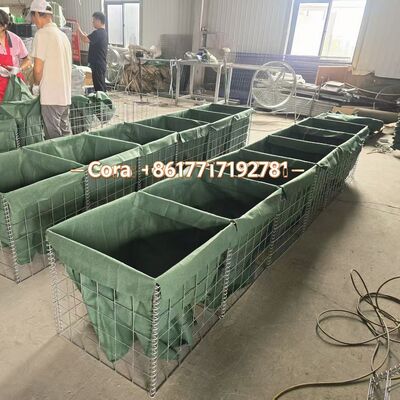

Spring-connected mesh panels form rectangular containers with multiple or single cells. Fill with sand, earth, cement, stone, or other materials to create protective walls and fencing systems.
Technical Specifications
- Wire Diameter: 4-5mm
- Mesh Size: 3" (75x75mm, 50x50mm, 80x80mm)
- Panel Size: 13 standard sizes for comprehensive security protection
- Geotextile: Heavy-duty non-woven polypropylene
- Color Options: Grey, Military Green, Sand color
- Finish: Hot-dipped galvanized, Galfan wire
- Packing: Palletized for secure transport
Product Dimensions
| Product |
Height |
Width |
Length |
| MIL1 5442 R |
54" (1.37M) |
42" (1.06M) |
32'9" (10M) |
| MIL2 2424 R |
24" (0.61M) |
24" (0.61M) |
4' (1.22M) |
| MIL3 3939 R |
39" (1.00M) |
39" (1.00M) |
32'9" (10M) |
| MIL4 3960 R |
39" (1.00M) |
60" (1.52M) |
32'9" (10M) |
| MIL5 2424 R |
24" (0.61M) |
24" (0.61M) |
10' (3.05M) |
| MIL6 6624 R |
66" (1.68M) |
24" (0.61M) |
10' (3.05M) |
| MIL7 8784 R |
87" (2.21M) |
84" (2.13M) |
91' (27.74M) |
| MIL8 5448 R |
54" (1.37M) |
48" (1.22M) |
32'9" (10M) |
| MIL9 3930 R |
39" (1.00M) |
30" (0.76M) |
30" (9.14M) |
| MIL10 8760 R |
87" (2.21M) |
60" (1.52M) |
100' (32.50M) |
| MIL11 4812 R |
48" (1.22M) |
12" (0.30M) |
4' (1.22M) |
| MIL12 8442 R |
84" (2.13M) |
42" (1.06M) |
108' (33M) |
Applications
Flood Control
Increasingly popular for coastal regions and flood-prone areas, welded defensive barriers provide effective flood protection solutions for countries near coastlines.
Protection Walls
Ideal for residential and commercial protection walls, offering lightweight construction with fast, easy operation for rapid wall assembly.
Key Advantages
Easy Installation
Simply position in desired location, unfold, and fill with sand or earth. Installation can be completed by just 2-3 personnel.
Anti-Corrosion
Manufactured from hot-dipped galvanized wire for exceptional durability, providing 10+ years of reliable outdoor protection performance.
