Product Overview

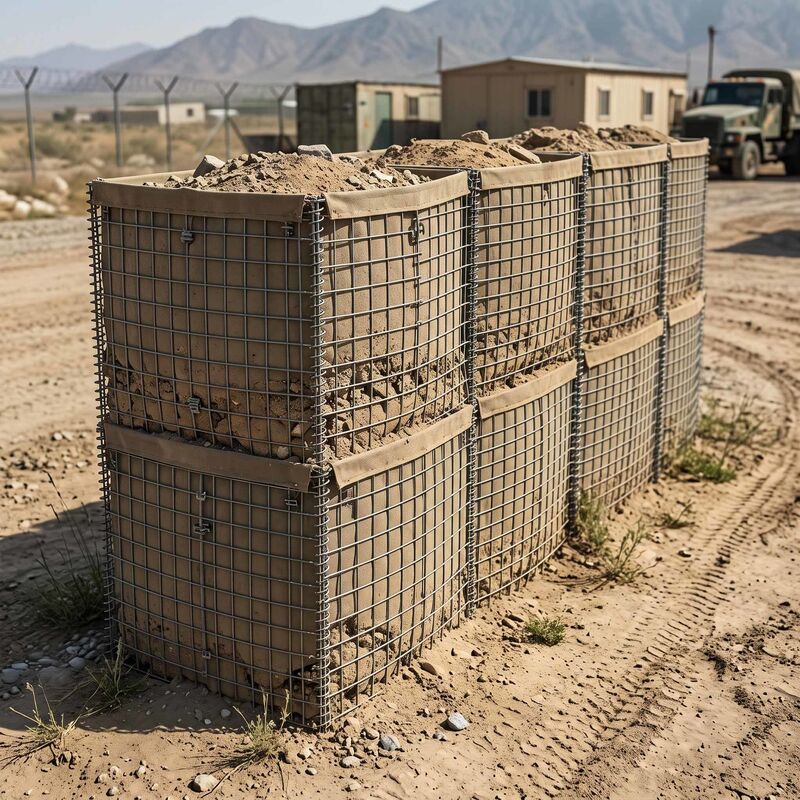

The Welded Gabion Defensive Barrier (commonly engineered to standard military bastion specifications) is a multi-cellular, collapsible barrier system manufactured from heavy-duty welded galvanized steel wire mesh and lined with heavy-duty non-woven polypropylene geotextile fabric.

Designed for rapid deployment via standard earth-moving equipment, each unit unfolds accordion-style and can be filled with locally sourced materials such as sand, gravel, soil, or crushed rock. The resulting monolithic structure delivers high-level blast mitigation, ballistic protection, vehicle impact resistance, and emergency flood containment.

Technical Specifications

Manufactured in full compliance with international military and civil protection standards, comparable to industry-standard Mil specifications:

General Material Specifications

• Mesh Wire Diameter: 4.0 mm – 5.0 mm (high tensile steel wire)

• Mesh Opening (Aperture): 76.2 mm × 76.2 mm (3" × 3") standard

• Coating / Corrosion Protection: Hot-dip galvanized (min. 275 g/m²) or Galfan coated (95% Zinc + 5% Aluminum, min. 350 g/m²)

• Geotextile Liner: Heavy-duty non-woven polypropylene fabric (250 g/m² – 350 g/m²), UV-resistant

• Geotextile Color Options: Desert Sand (Beige), Military Green, or Earth Brown

• Joining Pins & Coil Wire: High-strength galvanized helical spiral wire and locking pins for seamless cell-to-cell coupling

Standard Model Sizing Guide (Mil Standard Reference)

(Custom dimensions and cell configurations are available upon engineering request.)

Product Advantages

• Rapid Deployment & Low Labor Overhead: A 10-meter section can be unfolded and filled mechanically by a front-end loader in under 20 minutes, replacing the work of hundreds of manual sandbags.

• Superior Blast & Ballistic Mitigation: Certified to absorb high-velocity shrapnel, secondary fragments, RPG strikes, and direct artillery shockwaves due to the mass damping properties of compacted earth inside the steel cell cage.

• All-Terrain Adaptability: Can be installed on sand, mud, asphalt, rock, or uneven inclines without extensive foundation engineering.

• Exceptional Weather & Corrosion Resistance: Heavy Galfan/hot-dip galvanized wire combined with UV-stabilized geotextile provides a design lifespan of 10–20+ years in harsh desert, coastal, or humid field conditions.

• Modular & Stackable Architecture: Units can be interconnected linearly to form continuous walls or stacked vertically (stepped pyramid configurations) to build elevated defensive fortifications up to 5+ meters high.

• Collapsible & Cost-Efficient Logistics: Ships flat-packed on standard pallets, maximizing sea-container capacity and minimizing tactical transport volume.

Product Applications

1. Military & Defense Fortifications

• Forward Operating Bases (FOB) and combat outpost perimeters

• Guard posts, observation towers, and personnel bunkers

• Vehicle checkpoints (ECP) and blast baffles

• Ammunition storage facilities and aircraft blast revetments

2. Civil Protection & Flood Control

• Emergency flood dykes and coastal storm surge barriers

• Riverbank reinforcement and levee breach sealing

• Spillway protection and reservoir embankment stabilization

• Mudslide and soil erosion mitigation

3. Critical Infrastructure & Homeland Security

• Perimeter security for oil and gas refineries, power plants, and chemical sites

• Anti-ram vehicle intrusion barriers around government compounds and airports

• Temporary event crowd control and urban tactical security barriers

•
