Product Details:
|

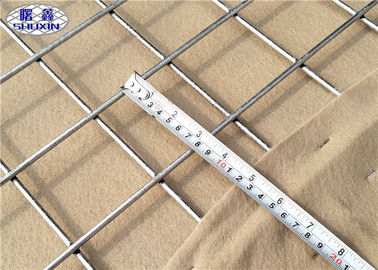

Raw Material: | Low Carbon Steel Wire Q195 | Geotextile: | 250 G/㎡ Standard |
---|---|---|---|
Mesh Diameter: | 4.0mm, 5.0mm | Apeture: | 3" (76.2mm×76.2mm) |
T/S: | 500 - 800 MPA | Accessories: | Staple, Joint Pin |
Highlight: | hesco defensive barriers,wire mesh box |
Sand Color Golfan - Coated Military Defensive Barriers For Emergency Flood Control
Welded Barrier Barrier could be used for military defending. From a simple perimeter wall to a complex base infrastructure, Shuxin products provide rapid expeditionary protection to personnel, equipment and critical assets in any terrain. In the field, it's unfolded and filled by a standard front loader or backhoe, with any dirt or rubble that's locally available and tamped down hard.
The Standard Technical Specifications from SX 1 to SX 19
Welded Gabion Box for Defensive Barrier | |||
Model | Height | Width | Length |
SX-1 | 54"(1.37M) | 42"(1.06M) | 32'9"(10M) |
SX-2 | 24"(0.61M) | 24"(0.61M) | 4'(1.22M) |
SX-3 | 39"(1.00M) | 39"(1.00M) | 32'9"(10M) |
SX-4 | 39"(1.00M) | 60"(1.52M) | 32'9"(10M) |
SX-5 | 24"(0.61M) | 24"(0.61M) | 10'(3.05M) |
SX-6 | 66"(1.68M_ | 24"(0.61M) | 10'(3.05M) |
SX-7 | 87"(2.21M) | 84"(2.13M) | 91'(27.74M) |
SX-8 | 54"(1.37M) | 48"(1.22M) | 32'9"(10M) |
SX-9 | 39"(1.00M) | 30"(0.76M) | 30'(9.14M) |
SX-10 | 87"(2.21M) | 60"(1.52M) | 100'(32.50M) |
SX-11 | 48"(1.22M) | 12"(0.30M) | 4'(1.22M) |
SX-12 | 84"(2.13M) | 42"(1.06M) | 108'(33M) |
SX-19 | 108"(2.74M) | 42"(1.06M) | 10'5"(3.18M) |
The Application for Military Defensive Barriers
Flood Control
1. Flood Prevention Barrier
From a simple perimeter wall to a complex base infrastructure, SHUXIN products provide rapid expeditionary protection
2. Permanent or Semi-permanent Dike
Defensive Barriers can as the Dike against the Flood permanently or Semi-Permanently.
3. Flood Control Retaining Wall
Wiht sand and earth in it, Welded Gabion Box can as a retaining Wall to against the flood.
4. Protection Engineering of Seaside Area
Military Defensive Barrier is more and more homemade at the seaside area as Protection Fence
5. Protecting Existing Structures
6. Coastal Erosion Control
The Advantages of Welded Defensive Barrier:
1. Lifetime
The unit must be made of a Wire Mesh basket which is manufactured from Galvanised coated, welded mesh. The mesh must be made of rust protected alloy materials.The Wire Mesh must have a guaranteed life of not less than 5 years while exposed to environment and 10 years when in store.
2. Collapsible
Mesh Panel is joint by spring which is a circle, Mesh Panle can turn 360° unobstructed, so, when shiping the goods, it is collapsible to save space.
3. Strong Protection
Thickner Mesh Panle together with thickner geotextile combined a strong Protection wall.
