Product Details:
|
| Material: | Q 195 Low Carbon Wire | Mesh Wire: | 5.0mm |
|---|---|---|---|
| Mesh: | 3"x3" | Surface Treatment: | Hot Dipped Galvanized |
| Geotextile: | 300gsm Sand Color,Green Color | Application: | Military Protection |
| Certificate: | CE ISO | PACKAGE: | Wooden Pallet |
| High Light: | strong protection military hesco barriers,3x3 military hesco barriers,iso military barrier |
||
Welded Mesh Gbaion 3" x 3" Galvanized Steel Sand Soil Military Hesco Barriers

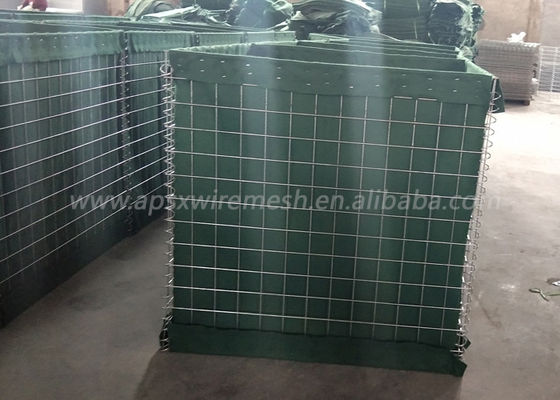

Introduction of Hesco Barrier
Defensive Barrier Wall, also known as explosion-proof walls and flood-proof walls, are made of welded gabion nets and geotextiles, which are sewn and can hold fine sand, soil and stones can replace traditional military bunker sandbags, and can be recycled. product. Different from traditional gabion nets (stone baskets), it can not only contain stones, but also finer sand.

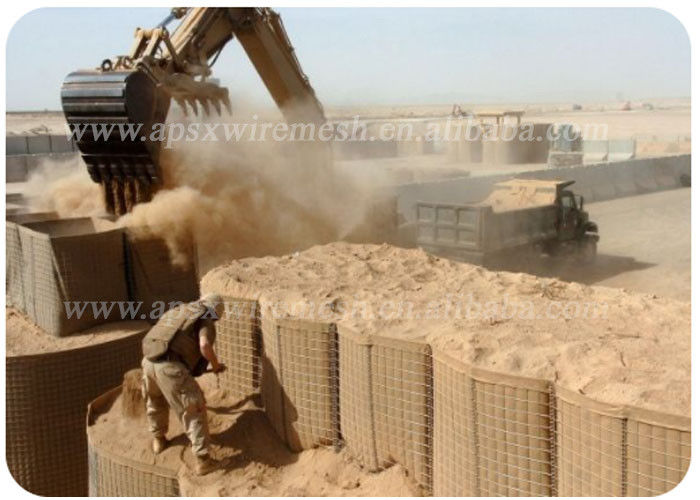

The filling materials are made on-site, which is especially suitable for use in the lower reaches of rivers or beaches where there is a lack of stone. With the help of advanced tools such as excavators and forklifts, the installation efficiency is dozens or even hundreds of times that of traditional sandbags. It can be used as military equipment and can be used for temporary bunkers, fortresses, and pre-war headquarters to replace traditional artificial trenches, effectively reducing soldiers and personnel casualties.
operational principle

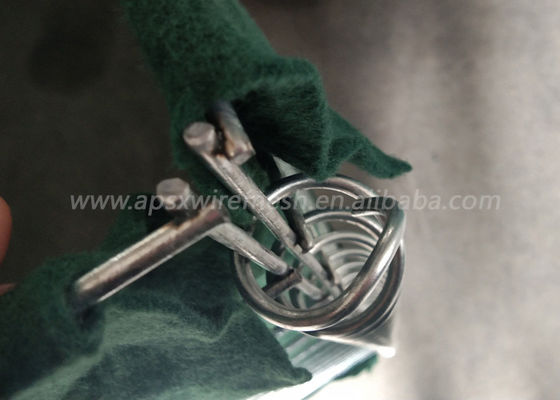

It is made of galvanized welded mesh, spring with other fittings, canbe filled with sand,earth,cement, stone, can be used in separate cell or some cells joint together.
| Model | Height | Width | Length | Internal Cells |
| SX-1(Mil 1) | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
| SX-2(Mil 2) | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
| SX-3(Mil 3) | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
| SX-4(Mil 4) | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
| SX-5(Mil 5) | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-6(Mil 6) | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-7(Mil 7) | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
| SX-8(Mil 8) | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
| SX-9(Mil 9) | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
| SX-10(Mil 10) | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5=20 cells |
| SX-11(Mil 11) | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
| SX-12(Mil 12) | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
| SX-19(Mil 19) | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 6 cells |
Detail Specification
1. Wire Diameter: 4-5mm
2. Mesh Size: 3" (75x75mm,50x50mm) 80*80mm
3. Panel Size: 13 type size for any security protection,suddenly burst attacks
4. Geotextile: In heavy duty non-woven polypropylene;
5. Color: Grey and Military Green,Sand color etc.
6. Finish: Hot dipped galvanized, Galfan wire.
7. Packing: Packed in pallet
Application
Protection of existing structures, highway traffic management, flood control, river channels, emergency flood control deployment, erosion control, retaining walls
Explosion-proof walls can be widely used in surrounding security and defensive walls, equipment revetments, explosives and contraband search areas, ammunition compounds, personnel and material bunkers, observation points, defensive shooting positions, highway checkpoints, border checkpoints
Hesco Barrier advantage
1.Galfan coated steel mesh frame
2. The integrated unit provides internal structural integrity.
3.Excellent strength and structural integrity
4.High tensile and impact resistance
5. Improve transportation efficiency and speed
Anping Shuxin Wire Mesh Manufactory Co., Ltd specializing in mesh gabion box with 18 years' experience. We have our own design team and can independently research new products, customization is also acceptable. Our products are widely exported to wide market, such as American Continent, Australia, Africa, the Middle East, Southeast Asian Countries and Regions
