Product Details:
|
| Material: | Q195, Low Carbon Steel Wire | Mesh Wire: | 5.0mm |
|---|---|---|---|
| Spring Wire: | 4.0mm | Geotextile: | 300 GSM Heavy Geotextile |
| Surface Treatment: | Galfan Coated | Life Duration: | Around 25 Years |
| Application:: | Miltary Protection , Military Exercises Base, Flood Control Etc. | Feature:: | Easy Install And Remove |
| High Light: | galvanized sand filled army barrier,retaining wall army barrier,soldier protection hesco bastion wall |
||
Galvanized sand filled military barrier hesco bastion gabion wall for soldier protection retaining wall

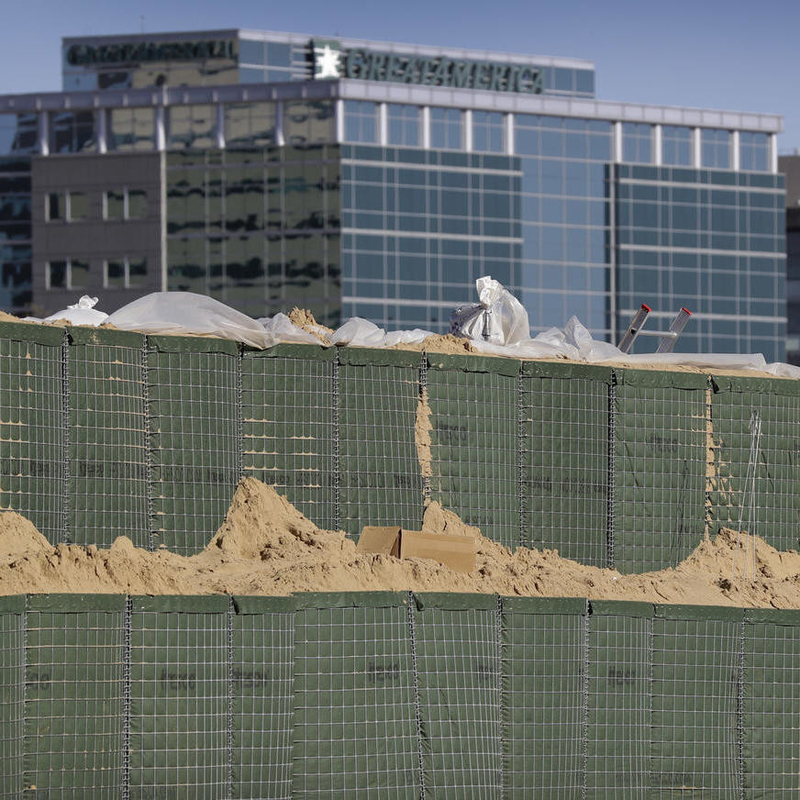

Anping Shuxin Wire Mesh Hesco Barrier unit is a multi-cellular welded mesh panel barrier system, it including welded Hot-dipped galvanised steel wire mesh and joined with vertical, helical-coil joints. The units are lined with a heavy-duty non-woven polypropylene geotextile. When joined and filled, the system can be used to fill with earth and sand as protection wall.
Explosion-proof walls are also known as modern metal meshes for flood protection and military fortifications. Composed of a collapsible wire mesh container,and heavy geotextile, it is used as a temporary or semi-permanent barrier or bastion to block an explosion or small weapon attack. Nowadays, people called "HESCO Barrier'. Anping Shuxin Wire Mesh involved in this area since 2007, have own professional production team to meet customer's kinds of requirements.

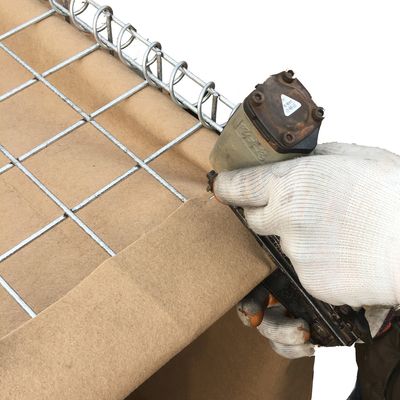

The concertainer MIL units are lined with either beige or green colored heavy-duty non-woven polypropylene geotextile.Hesco barrier /hesco bastion can be filled with sand, earth, cement,stone, then as a defence wall or bunker and widely used in the military to protect safety.
Gram Weight of geotextile:200g/m2 or 300g/m2
Finish:hot dipped galvanized,Galfan wire.
Welded method:welded after galvanized or galvanized after welded

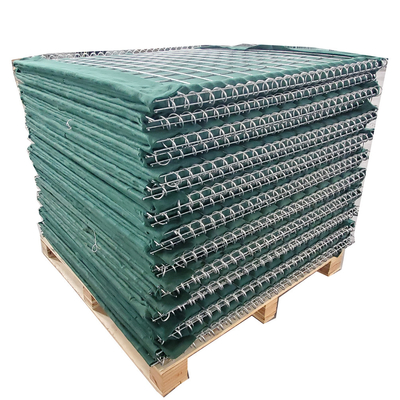

Packing:Wrapped with shrink film then packed in wood pallet or iron pallet
| Model | Height | Width | Length | Internal Cells |
| SX-1(Mil 1) | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
| SX-2(Mil 2) | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
| SX-3(Mil 3) | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
| SX-4(Mil 4) | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
| SX-5(Mil 5) | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-6(Mil 6) | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-7(Mil 7) | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
| SX-8(Mil 8) | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
| SX-9(Mil 9) | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
| SX-10(Mil 10) | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5=20 cells |
| SX-11(Mil 11) | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
| SX-12(Mil 12) | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
| SX-19(Mil 19) | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 6 cells |
Defensive Barrier Application :
1. landscaping, as retaining walls, landscape urban landscape and parks.
2. or high salt pollution in the environment, Gore can be used where welded wire mesh technology.
3. within the welded wire mesh filled with stone or natural cobblestone highway together protection, slope, roadway, bridge and so on.
4. welded wire mesh is widely used in earth or soil reinforcement such as desertification, slope protection, river, coastal protection, reservoirs, canals and pipelines renovation, Rock failure protection, bridge protection, protective net.
