Product Details:
|
| Mesh Size: | 3''*3'' | Advantage: | Collapsible ,Anti-Corrosion,Easy Installation |
|---|---|---|---|
| Color: | White, Sand Color, Military Green | Diameter Of:: | 4.00 Mm,3.7mm |
| High Light: | 3.7mm Hesco Mil 7,3.7mm Military Sand Wall,Coastal Erosion Hesco Mil 7 |
||

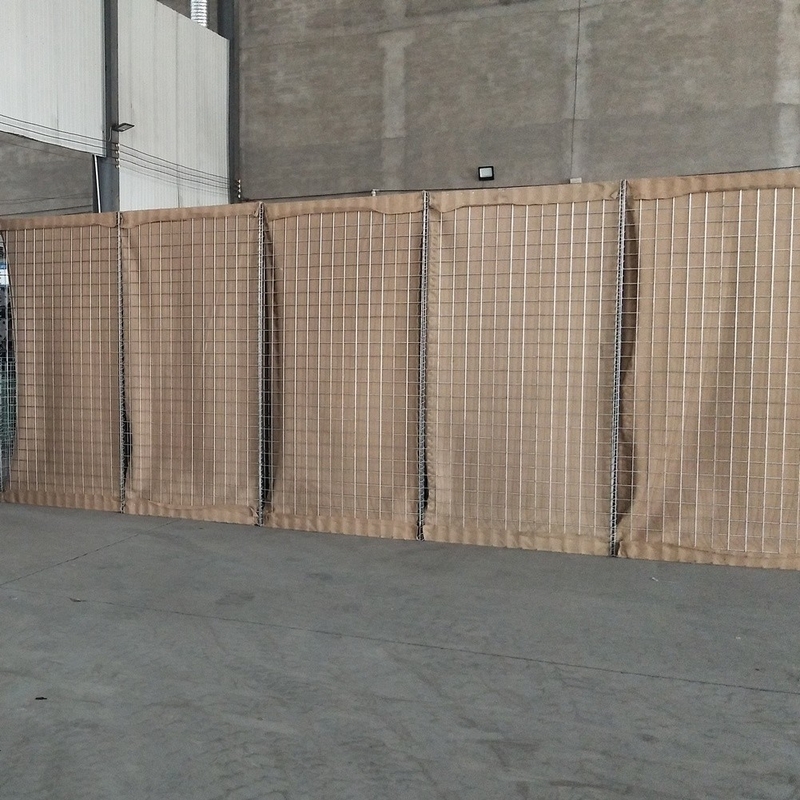

Defensive Bastion Mesh Gabion Mil7 Safety Military Hesco Barrier Sand Wall
Military Hesco Barrier Application:
Perimeter Security and Defence Wall
Equipment Revetments
Personnel and Material Bunkers
Observation Points
Defensive Firing Positions
Guard Posts
Explosives and Contraband Search Areas
Highway Checkpoints
Border Crossing Checkpoints
Protecting Existing Structures
Flood control retaining wall
Coastal Erosion
Protection engineering of seaside area.
|
Material: |
Galvanized Iron Wire, Low-Carbon Iron Wire |
| Type: | Welded Mesh |
| Hole Shape: | Square |
| Wire Gauge: | 4.0mm,5.0mm |
| Surface treatment: | Galvanized |
| Certificate: | CE , MIL Standard 810 Certificate |
The Advantages for Barrier:
1. Collapsible
It is assembled by Panel and Spring Wire, When Loading and transportation, It is Foldable into one piece.
2. Anti-Corrosion
The Raw material is Hot Dipped Galvanized Wire, it can use 10 years even more longer, fit for outside protection.
3. Easy Installation
After getting it, Just put it in the right place and open it, Full filled the sand and earth is okay. Even 2-3 persons can finish it.
4. Quick Displacements
When you want to use it in another place,Just to move it, It can use many times
5. Easy to repair
If some part is destroyed, Just left it and connect the new one is okay.
The Quanlity certificate
our factory had been verified on site by world-leading inspection company SGS Group.
Our products are strictly follow ISO9001,SGS,CE certificate.
our product comply with BS EN 10244-2:2009 & BS EN 1208-2:2012
Defensive Barrier Wall specification:
| Model | Height | Width | Length | Internal Cells |
| SX-1 | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
| SX-2 | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
| SX-3 | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
| SX-4 | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
| SX-5 | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-6 | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-7 | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
| SX-8 | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
| SX-9 | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
| SX-10 | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5=20 cells |
| SX-11 | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
| SX-12 | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
| SX-19 | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 6 cells |
1. Usually the HESCO Barriers packed in Pallet and 5 cells per set,After getting it, make it stand.
2. To Pull them, make them opened and in a line to achieve the length you want, If more cells use Joint Pin to connect(@HESCO Barrier Installation).
3. Full Fill the sand and earth in it and compaction
4. If you want more High and Wide of it, You can stack the HESCO Barrier on each other.
Defensive Mesh gabion box Application:
Perimeter Security and Defence Wall
Equipment Revetments
Personnel and Material Bunkers
Observation Points
Defensive Firing Positions
Guard Posts
Explosives and Contraband Search Areas
Highway Checkpoints
Border Crossing Checkpoints
Protecting Existing Structures
Flood control retaining wall
Coastal Erosion
Protection engineering of seaside area.
