Product Details:
|
| Product Name: | Anti-blast Wall Protection Defense Barrier Durable Welded Sand Bag Gabion Wall | Hole Shape: | Hole Shape |
|---|---|---|---|
| Wire Gauge: | 4.0 Mm, 5.0 Mm | Processing Service: | Bending, Welding, Cutting, Defensive Barriers |

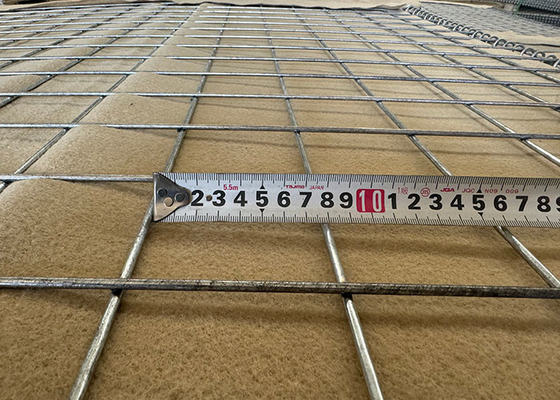

| Hole Size: | 3"*3" , 76.2 X 76.2 Mm | Wire Diameter: | 4.0 Mm, 5.0 Mm |
| Surface Treatment: | Hot Dipped Galvanized | Key Word: | Anti-blast Wall Protection Defense Barrier |
| Highlight: | Durable Welded Sand Bag Gabion Wall,Anti-blast Wall Protection Defense Barrier,Welded Sand Bag Gabion Wall |
||
Product Description

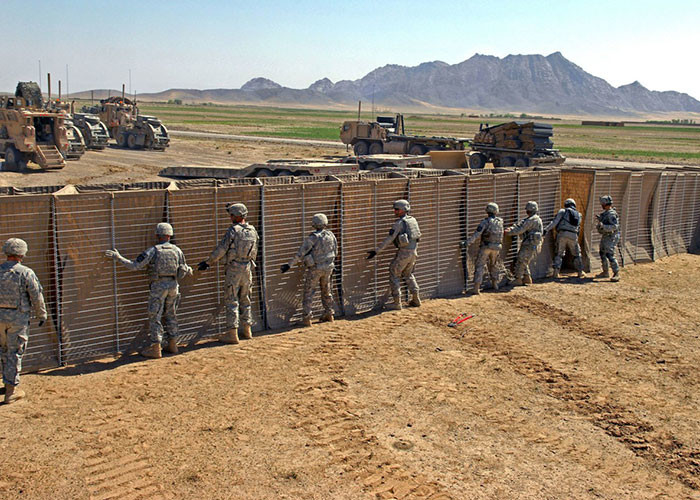

Defensive Barrier is a structure, system or measure used for defending, protecting or blocking certain threats, attacks or adverse effects. It is made of Collapsible Welded Gabion Mesh and UV Protection Heavy Geotextile, The common surface treatment is Hot Dipped Galvanized before welding, HDP Galvanized after welding, and Galfan Coated. Both of them have a long using life. It has seen considerable use in Iraq, Afghanistan and Africa.
Environmental Barriers,Flood Barriers, a reliable, easy-to-deploy, and robust solution foremergency flood protection or long-term wetland restoration.
Defensive Barriers: Protecting both and civilian personnel in dangerous environments demandsdefensive solutions that are secure, reliable, and readily available.
Protective Barriers: Protect your workforce, Create a secure refuge for your employees byprotecting up to eight people with Accommodation Bunker.
Rockface: transforms the highly effective wall into an aesthetically pleasing structure ideal forcustomer-facing perimeter security where a more benign appearance is required.
Defensive Barrier Wall that has the ability to resist explosion shock waves and can limit thedestructive effects of explosions within a certain range.
Compared with the concrete explosion-proof wall, it has the advantages of light weight, easyloading and unloading,recyclable and reusable.
All KN products are pre-as-sembledand delivered palletised with joining pins,to enable the connection of individual units,which can then be filled with availablematerial using minimal manpower andcommonly available equipment.
Assembling the bastion entails unfolding it andfilling it with sand, soil or gravel, usually usinga front end loader.The placement of the barrieris generally very similar to the placement of asandbag barrier or earth berm except that roommust generally be allowed for the equipmentused to fill the barrier.
Packing&Shipping

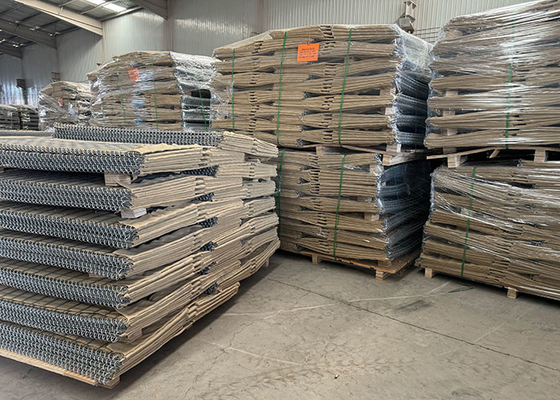

Defensive barrier packing on pallet then wrapped with plastic film outside .
Besides, customers' request are also available.
| MODEL | HEIGHT | WIDTH | LENGTH | WEIGHT | CELLS No.s | |
| KN-1 Unit | 4'6''(1.37mm) | 3'6''(1.06m) | 32'9”(10m) | 149(kg) | 9 | 1x4+1x5cells |
| KN-2 Unit | 2'(0.61m) | 2'(0.61m) | 4'(1.22m) | 10(kg) | 2 | 1x2cells |
| KN-3 Unit | 3'3”(1.00m) | 3'3”(1.00m) | 32'9”(10m) | 113(kg) | 10 | 2x5cells |
| KN-4 Unit | 3'3”(1.00m) | 5'(1.52m) | 32'9”(10m) | 155(kg) | 10 | 2x5cells |
| KN-5 Unit | 2'(0.61m) | 2'(0.61m) | 10'(3.05m) | 22(kg) | 5 | 1x5cells |
| KN-6 Unit | 5'6”(1.68m) | 2'(0.61m) | 10'(3.05m) | 66(kg) | 5 | 1x5cells |
| KN-7 Unit | 7'3”(2.21m) | 7'(2.13m) | 91'(27.74m) | 936(kg) | 13 | 2x4+1x5cells |
| KN-8 Unit | 4'6”(1.37m) | 4'(1.22m) | 32'9”(10m) | 153(kg) | 9 | 1x4cels+1x5cels |
| KN-9 Unit | 3'3”(1.00m) | 2'6”(0.76m) | 30'(9.14m) | 101(kg) | 12 | 2x6cells |
| KN-10 Unit | 7'3”(2.21m) | 5'(1.52m) | 100'(30.50m) | 1040(kg) | 20 | 4x5cells |
| KN-11 Unit | 4'(1.22m) | 12”(0.30m) | 4'(1.22m) | 16(kg) | 2 | 1x2cells |
| KN-12 Unit | 7'(2.13m) | 3'6”(1.06m) | 108'(33m) | 813(kg) | 30 | 6x5cells |
| KN-19 Unit | 9'(2.74m) | 3'6”(1.06m) | 10'5”(3.175m) | 198(kg) | 6 | 1x6cells |
| All dimensions and weight are nominal Diagrams and products are for iustrative purpose onlv. |
||||||
