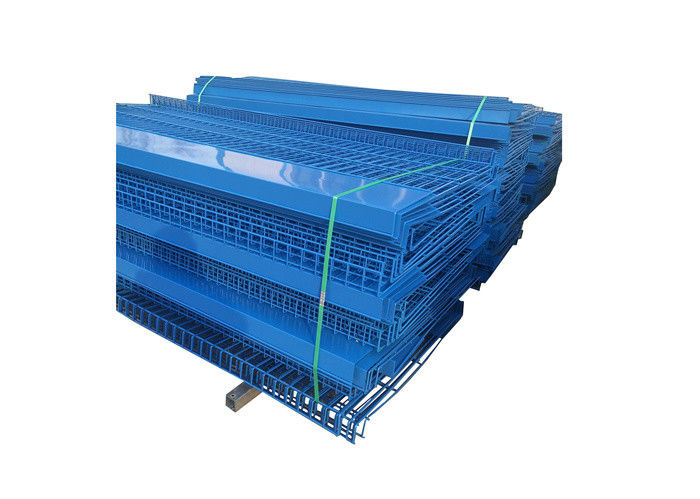

Anti - Fall Safety System Edge Protection Barrier For Concrete Ctructures

Anti - Fall Safety System Edge Protection Barrier For Concrete Ctructures
Anti - Fall Safety System Edge Protection Barrier For Concrete Ctructures Anti - Fall Safety System Edge Protection Barrier For Concrete Ctructures

Large Image :  Anti - Fall Safety System Edge Protection Barrier For Concrete Ctructures

Product Details:
Place of Origin: Hebei, China
Brand Name: Shuxin
Certification: CE
Model Number: SX-3
Payment & Shipping Terms:
Minimum Order Quantity: 100 Pieces
Packaging Details: Packing into pallet
Delivery Time: 8-15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3500 pieces/month

Anti - Fall Safety System Edge Protection Barrier For Concrete Ctructures

Description
Type: Fencing, Trellis Material: Q235
Frame Finishing: Powder Coated Color: Blue, Red, Orange, Customized
Application: Edge Protection Mesh Opening: 50X100 Mm, 50X200 Mm
Size: 1.2*2.6 M, Customized
Highlight:

edge protection fencing

,

temporary fall protection barriers

Anti-fall Safety System Edge Protection Barrier For Concrete Ctructures





Product Description



Edge protection barriers are fitted with unique features that make them market leaders as these clever barriers incorporate guardrails, toeboards and debris mesh into one single lightweight steel mesh barrier.



A lightweight edge protection system, manufactured from steel and designed to provide perimeter edge protection to an excavation. Designed to be installed by two people this system is available with various panel lengths for flexibility.



Specification



Type of Steel Mesh Barrier
 Type  Type 1  Type 2  Type 3
 Weight  9Kg  16Kg  18Kg
 Length  1325mm  2285mm  2585mm
 Height  1150mm  1150mm  1150mm
 Finish  Gaiv. wire+Powder coat
 Material  Metal
 Wire diameter  4.0mm
 Mesh size  50X100mm,50X200mm
 Color  Red, yellow, bule, white, Support customization



Advantages



1. Combines guardrails, toeboard and debris mesh in one product

2. Steel mesh protection with impact-absorbing capacity

3. Closed and returned toeboard for greater debris containment

4. Returned top edge with no sharp edges

5. Reinfored side bars for enhanced durability



Feature



1. Our edge protection barriers are light (under 20kg), making them incredibly each to carry, manoeuvre and handle on site.

2. The expansive wide range of edge protection systems, including barriers, posts & attachments make this one of the most versatile systems available.

3. This edge protection & fall safety system has been designed to span trades, accommodating for a range of different edge protection needs by simply using different combinations of barriers, posts and attachments.

4. Powder coated finish: Gives you an aesthetically pleasing edge protection barrier system & helps to guard against corrosion, giving your barrier a longer life span.



Application



Edge Protection Barrier Fence also named edge protection fence,edge protection is fully used in construction under building to protect people.

Easy to install steel edge protection barrier with impact-absorbing capacity, welds that can withstand a force of 500kg and full debris containment toe board.



This simple to install system offers site personnel maximum protection on the perimeter of construction slabs, around stair and lift wells, excavations, etc. Mesh barriers are considered to be simple to install as they require no specialist skills but also offer a professional look to a construction site. There are extensive attachments and accessories for this system which enables it to be applied to virtually any construction project.

Anti - Fall Safety System Edge Protection Barrier For Concrete Ctructures 0
